Product Specifications
| Prod Model: |
XKP-400/450/560/610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Waste Tire and Rubber |
| Colour: |
as Require |
| Brand: |
Qsy |
| Certificate: |
ISO CE |
Product Description

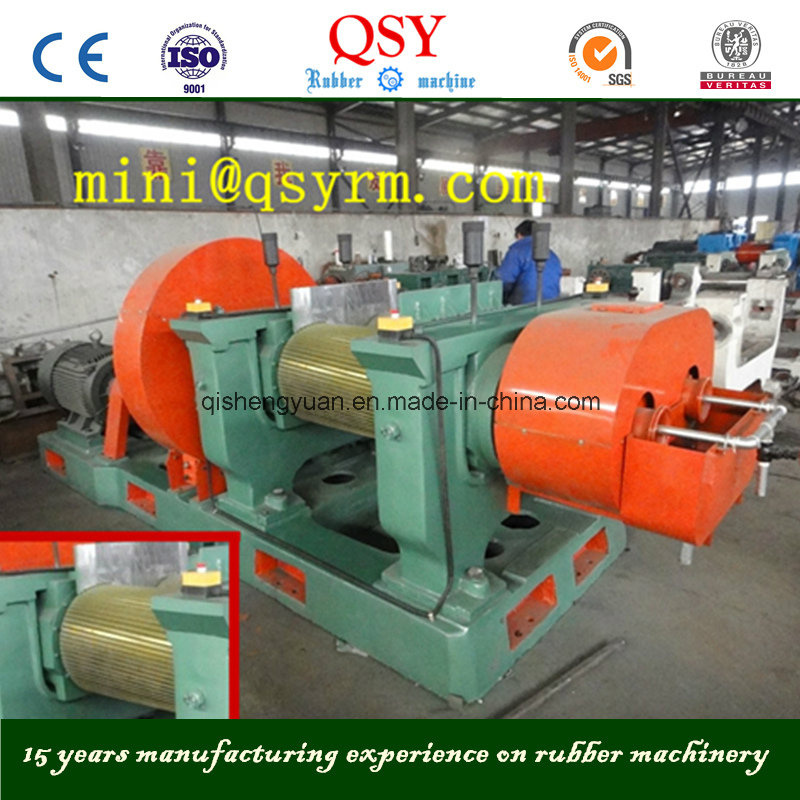

Rubber cracker mill/Crumb rubber making &used tire recycling
1.Rubber Cracker Mill is used for breaking, plasticating and mixing of rubber materials.
2.The rollers are made of chilled cast iron with wear-resistant hard surface.
3.The two rollers are grooved. The bored rolls can be cooled homogeneously though inputting steam and cooling water.
4. The two rollers rotate reversely with different speeds, so that rubber material can be processed.
5. it's durable
6. it's enviromental
Parameters
Parameters/version | XKP-400 | XKP-450 | XKP-560 | XKP-610 |
| Front roll diameter(mm) | 400 | 450 | 560 | 610 |
| Back roll diameter (mm) | 400 | 450 | 510 | 610 |
| Roll length (mm) | 600 | 760 | 800 | 800 |
| Front roll surface speed (m/min) | 17.32 | 23.2 | 23.86 | 24.96 |
| Friction ration | 01:01.2 | 01:01.4 | 01:01.3 | 01:1.38/1.14 |
| Max, nip (min) | 8 | 8 | 15 | 20 |
| Feeding capacity per (kg) | 100-300 | 200-800 | 8000-1500 | 1500-2500 |
| Power(kw) | 45 | 55 | 90/110 | 132/160 |
| Size (length*width*height) (mm) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 | 5580*2500*2320 |
Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd. Was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service.
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001: 2008 & CE quality management system certification, Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.
