Product Specifications
| Markets: |
South America |
| Type: |
X(S)N-35*30/55*30/75*30/110*30/150*30 |
| Total Volume Of Mixing Chamber: |
75/125/175/250 |
| Working Volume Of Mixing Chamber: |
35/55/110/185 |
| Motor Power: |
55/75/110/185 |
| Tilting Motor Power: |
2.2 |
| Tilting Angle: |
140 |
| Speed Ratio Of Rotors: |
30/24.5 |
| Satem Pressure: |
0.5-0.8 |
| Size: |
3200*1900*2945 |
| Weight: |
6500 |
Product Description

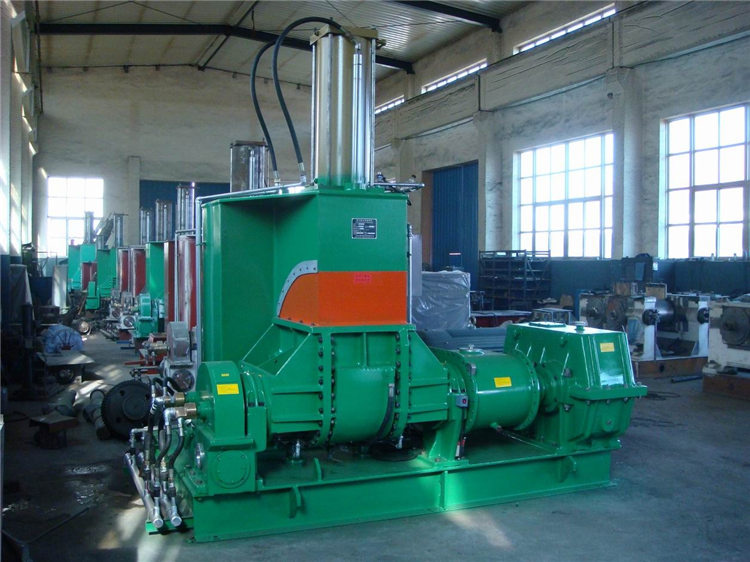

By 2015 China quality certification turnover type sealed rubber machine
technical parameter:
Item
Model |
X(S)N-
10×32 |
X(S)N-
20×34 |
X(S)N-
35×30 |
X(S)N-
55×30 |
X(S)N-
75×30 |
X(S)N-
110×30 |
Total volume of mixing chamber |
L |
25 |
45 |
75 |
125 |
180 |
250 |
Working volume of mixing chamber |
L |
10 |
20 |
35 |
55 |
75 |
110 |
Driving motor power |
kw |
15 |
22 |
55 |
75 |
110 |
185 |
Tilting motor power |
kw |
1.1 |
1.5 |
2.2 |
2.2 |
4 |
4 |
Tilting angle |
° |
140 |
140 |
140 |
140 |
140 |
140 |
Rotational speed of the rotor(front/rear) |
r/min |
32/23.5 |
34/28 |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
Pressure of compressed air |
Mpa |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Capacity of compressed air |
m3/min |
≥0.5 |
≥0.7 |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
Pressure of cooling water(rubber mixing) |
Mpa |
0.2-0.4 |
0.2-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
Pressure of heating steam(plastics mixing) |
Mpa |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
|
L |
mm |
2580 |
2630 |
3200 |
3280 |
3330 |
3930 |
Overall dimensions |
W |
mm |
1300 |
1520 |
1900 |
1930 |
2620 |
3000 |
|
H |
mm |
2280 |
2550 |
2950 |
3070 |
3340 |
3660 |
Weight |
kg |
3300 |
4500 |
6500 |
7500 |
10500 |
14500 |
About us:
Qingdao eenor trading co ltd is a corporation with independent legal person qualification of marketing company with the right of import and export founded in 2004 with many years of production experience rubber machinery main produce are tire recycling machine plate vulcanizing press open refining machine cutter tire vulcanizing press tire rubber cutting machine rubber plastic tile vulcanizing machine cutter tire vulcanizing press tire rubber cutting machine rubber plastic tile vulcanizing press machine extrusion machine filtering machine equipment ordinary conveyor line waste tire reclaimed rubber powder production line the company also may according to the customer's need to design and manufacture various non -standard rubber machinery equipment
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
