Product Specifications
| Prod Model: |
NHZ-5L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mixer Type: |
Double Ribbon Mixer |
| Working: |
Shear Mixer |
| Application: |
Liquid |
| Additional Capabilities: |
Drying |
Product Description

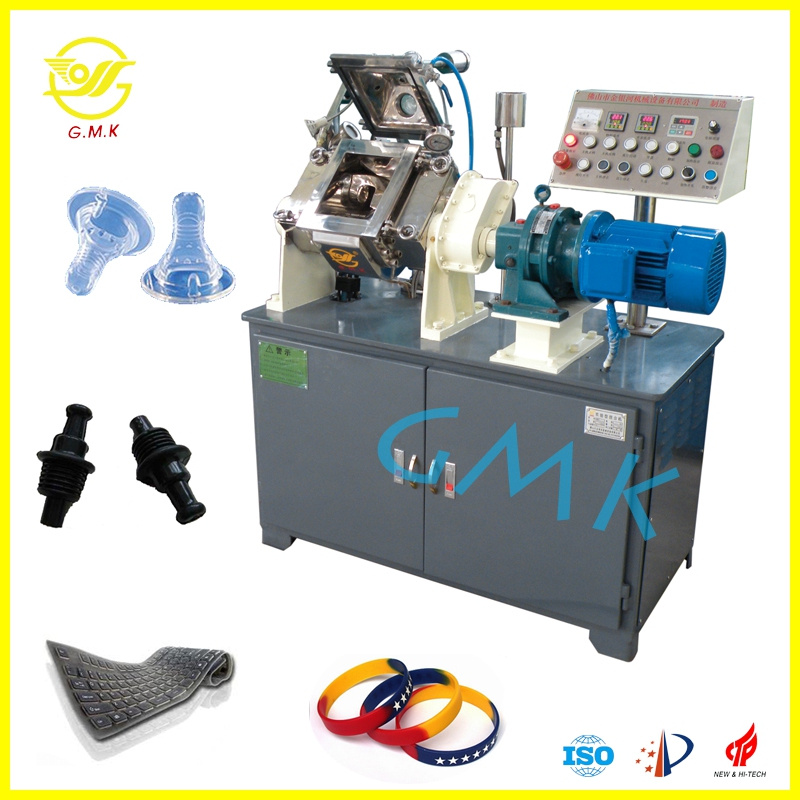

rubber machinery 5L Laboratory Rubber Use Mixer Lab Vacuum Kneader
1. SUMMARY
G. M. K kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity materials.
NHZ series kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity and super high viscosity materials. Vacuum Kneader is widely used in such industries as high viscosity sealant, silicone rubber, CMC, battery, ink, dye, pharmacy, resin, plastics and cosmetics, etc.
Kneader temperature adjustment can be done by using heat transfer oil circulation, electric heating, steam and water cooling. It can be made tank body jacket, wallboard jacket, stirrer passing cooling water, passing heat transfer oil and such structures for heating and cooling.
Discharge modes include hydraulic tank turning discharge, screw discharge, bottom discharge and so on. Tank cover open and close are operated by hydraulic. Feeding and discharge are very convenient.
The shaft sealing adopts unique vacuum box balance structure (National patent No. ZL200420087991.3), which is particularly useful in improving system vacuum degree and material purity.
Kneader is comprised of 6 parts of kneading, chassis, transmission system, vacuum system, hydraulic system, electric control system, etc. Kneading part is comprised of tank, stirrers, wallboard and tank cover. Stainless steel is used for parts contacting materials.
Available capacity: 1L, 2L, 5L, 10L, 50L, 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 6000L
| MODEL | NOMINAL CAPACITY | VACUUM DEGREE | DISCHARGE MODE | HEATING/COOLING MODE |
| NHZ-1L | 0L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-2L | 2L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-5L | 5L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-10L | 10L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-50L | 50L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-100L | 000L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-200L | 200L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-300L | 300L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-500L | 500L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-1000L | 1000L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-2000L | 2000L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
| NHZ-3000L | 3000L | -0.098MPa | Hydraulic Tank Turning/ Screw Discharge | Electric, steam heating / oil, water cooling |
