Rubber Tensile and Elongation Testing Machine (HZ-1003B)
| Price: |
US $ 2000-6000/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

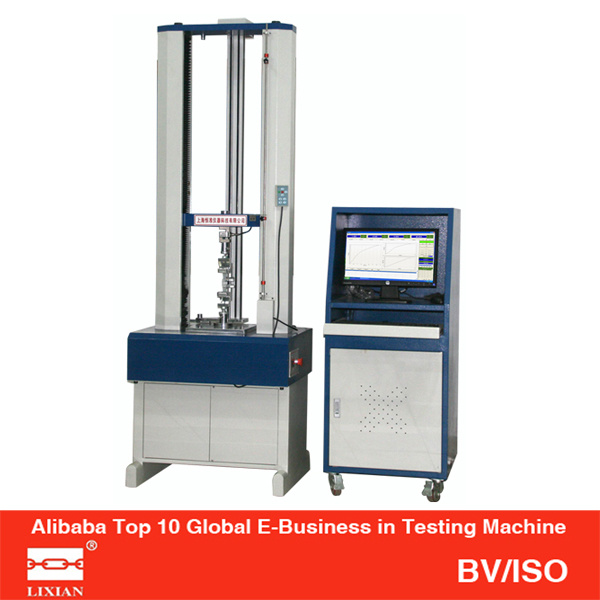

Computer Servo Universal Testing Machine
Equipment summary:
The machine is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive, computer and color inkjet
printer. High-precision electronic motor can be set to five-speed, the components are connected by plug-way, Floor-standing models, it is taken account of modern industrial design and ergonomics in modeling and coating
It can be tested all the materials in stretch, compression, bending, shear, embedded relay, peeling, tearing,
crack, etc,such as rubber, plastics, leather, metal, nylon wire, fabric, paper, aerospace, packaging,
construction, petrochemical, electrical, vehicle, etc.
The implementation of standards and standard configuration:
1. GB/T4689.20-1996 measuring fastness of leather's adhesion
2. QB/T2710-2005 measuring leather's expansion and the rate of elongation
3. QB/T2711-2005 measuring tear force of leather
4. QB/T2712-2005 measuring leather's strength and stretch of spherical crack test
Specifications
1.Computer Servo Type Universal Testing Machine
A. High-precision sensor 1ton from U.S.A. Accurate Forces within ± 0.5%.
B. High-precision 24 bits A / D, sampling frequency 200Hz
C. Power System: Panasonic AC Servo Motor + Driver + CAVEX + precision ball screw
D. Control System: it is more precise using Pulse Command control modem, the range
in speed control is 0.01 ~ 250 mm / min.the board of iron can be adjust to fast and slow
by the control board. it is automatically saved after testing .
E. Data transmission: RS232 Transfer
F. Display: windows XP test software.
G. easy to control five speed and calibration system.
H. test software can precision control in position, speed, rate of load force and rate
of stress, satisfy the different requirements of test.
I. Test space: Testing width is about 400 mm (standard), moving space of active iron
1000mm (excluding fixtures)
J. displacement: coder 2500 P / R, increase four-time accuracy. adopt Japanese Lejing
coder that has strong anti-jamming capability, displacement resolution 0.001mm.

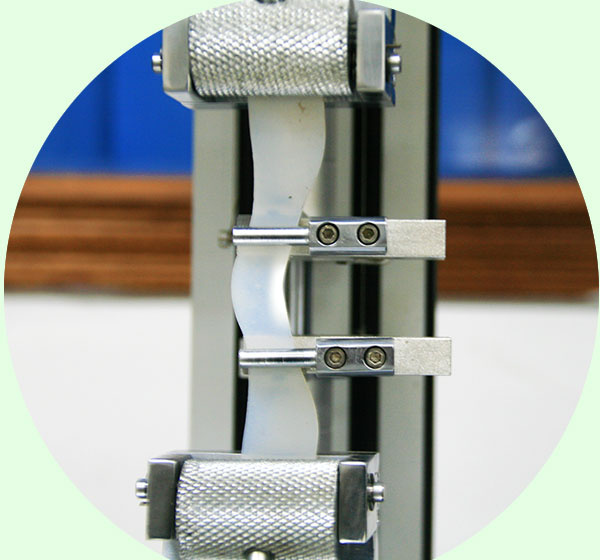

Small deformation: Metal extensometers, parsing 0.001mm.
K. Safe equipment : the system would shut down if overload or over-trip
2. software description about Computer Servo Type Universal Testing Machine
A. function of standard modular: provide users with the necessary applications to the test,
covering GB, ASTM, DIN, JIS, BS ... and other test standard specification.
B. Dual-Report Editor: provide user with the reported format that user choose (testing
program add EXCEL reported format, Extend the previous single pattern of statements)
C. length unit, force unit and showing the data can exchange, force unit T, Kg, N, KN, g,
lb, unit of length mm, cm, inch.

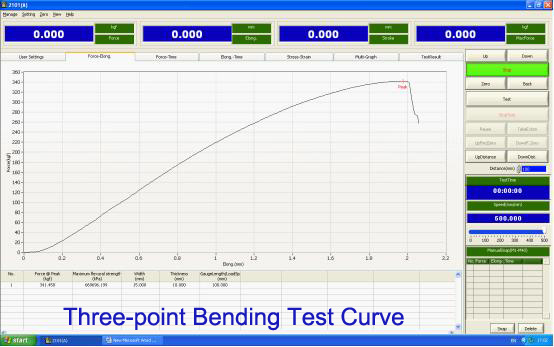

D. auto-optimization of graphic scale, display the best measurement of graphics. It can
test the exchange in graphics. It has the load - displacement, load - time,
displacement - time, stress - strain load -2 points extending maps, and lots of graph compared.
E. Test results can be output in EXCEL format.
F. the result of test can be automatically preserved or manual preserved, test can
automatically calculate the most strength, up and down yield strength, loop method,
best method, non-proportional extended strength, tensile strength, compressive
strength, tensile strength at any point, constant load extension, elastic modulus, rate
of elongation, peel range of maximum, minimum, average, force, total energy, bending
modulus, x% load in break displacement, load X% in break displacement, and so on .
the test data can be stored in any disk.
G. Software has a capability that can output the before data.
| Model | HZ-1003B |
| Max load | 5KN,1ton, option |
| Accurate grade | 1grade /0.5grade |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000,regardless of inside and outside,constant the resolution |
| Load sensor | Basic configuration:sensor(max load): one
Extended configuration:can add more sensors |
| Effective testing width | 390mm(can be widened according to customer's requirement ) |
| Effective tensile space | 400,500,600mm(can be increased the height according to customer's requirement) |
| Range of testing speed | 0.001~500mm/min |
| Accruacy of displacement measurement | Tolerance: ±0.5%/tolerance: ±0.2% |
Deformation of measured system
(according to the requirements ) | Min span :10mm, Max range of deformation :800mm
Extended deformation :Min span: 25mm,50mm,100mm, range of deformation :5mm,10mm,25mm |
| Accuracy of measured deformation | Tolerance :±0.5%(according to requirement of customer to choose the larger or small deformation) |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control,can jog |
| Return back | Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 800*550*2210mm(lenght*width*height) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V,50HZ, |
| Power | 0.4KW(depending on different demand of force, using different motor) |
| Machine weight | (about)300 Kg |
| Prod Model: |
HZ-1003B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Magnification: |
7 Automatic Switching |
| Displacement Resolution: |
1/1000 |
| Resolution Of Extensometer: |
1/1000 |
| Range Of Speed: |
0.01-500mm/Min or 1000mm/Min |
| Effective Tensile Stroke: |
800mm;1000mm;1200mm(Can Be Increased ) |
| Testing Width: |
380m(Can Be Increased) |
| Power Supply: |
220V |
| Power: |
About 2kw |
| Machine Weight: |
About250 Kg |
| Units: |
Kg, N, Lb, Ton Can Be Exchanged. |
| Type: |
Universal Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
Max Load:1 Ton |
| Accuracy Grade: |
0.01 N |
| Display: |
Computer Display |
