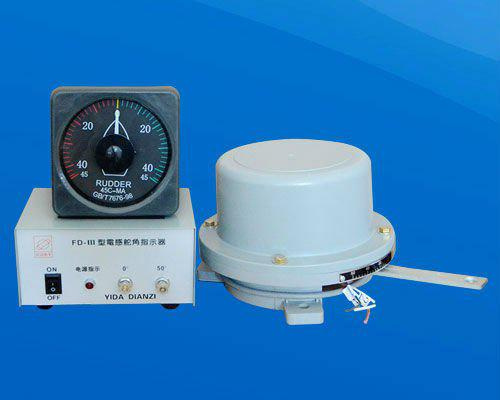

Model No.: Fd-3
Type: Inductance sensor
1. Technical data:
1. Power:
(1)DC24V± 20%, current: 80mA;
(2)AC220V/110V, 50Hz; (customize);
2. Meter:
Measuring range: ± 40° ;
Precision class: 1.5
Accept current rudder angle signal;
Show: Reflective words with lighting at the bottom inside
Materials: Metal;
3. Transmitter:
Adopts contactless variable inductance sensor, output current signal.
Deviation: Less than + - 0.75°
Materials: ABS;
Operating temp: -40~60 ° C
4. Working environment: -25~+55° C;
5. Air relative humidity: ≤ 85%;
4. Application:
If you have hydraulic steering, your ship's steering wheel will not indicate your rudder position.
Rudder angle indicator can show the position of your rudder continuously.
They display the rudder's position in degrees relative a zero state which means the rudder is in position to
Steer the ship straight forward.
The rudder angle indicator makes it easier to navigate wheel-controlled ships and boats out of harbours or through locks; Be the essential instruments for safe navigation
