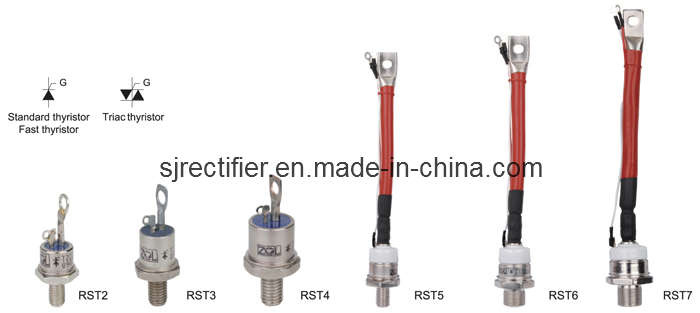

Russian Type Bi-Directional Thyristor

Name: Russian Type Bi-Directional Thyristor
Brand: china-manufacturer-directory.com
SKU: 696934805
Availability: InStock
Rating: 4.5 (133 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	TC171-250
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Technology:	Logic IC
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	International Standard Package
Application:	Furnace, Rectification
Model:	Tc171-250
Batch Number:	2015+
Brand:	Shangjing

Product Description

Features
High surge current capability
Stud cathode and stud anode version\
Wide current range
Inch device version available

Typical Applications
Battery charges
Converters
Power supplies
Machine tool controls
Welders
Motor control
Lighting circuits

Type	V_RRM	I_RRM	I_T(AV)	I_TSM	V_TM/I_TM	di/dt	dv/dt	V_GT	I_GT	I_H	T_j	R_jc	M2	Wt	Outline
			T55° C	10ms	25° C
	V	mA	A	kA	V/A	A/μ S	V/μ S	V	mA	mA	° C	° C/W	kN	kg
TC212-10	200-1200	3.0	10	0.07	1.75/14	5.0	2.2-25	2.0	3.0	5~50	-40 ~ +125	2.50	0.9-1.1	0.006	RST1
TC212-16	200-1200	3.0	16	0.10	1.75/22	5.0	2.5-25	2.0	3.0	5~50		1.55	0.9-1.1	0.006	RST1
TC222-20	200-1200	3.5	20	0.12	1.75/29	5.0	2.5-50	2.5	3.5	5~50		1.30	1.5-1.7	0.015	RST2
TC222-25	200-1200	3.5	25	0.20	1.70/35	5.0	2.5-50	2.5	3.5	5~50		0.90	1.5-1.7	0.015	RST2
TC232-40	200-1200	5.0	40	0.25	1.75/58	6.3	6.3-100	3.0	4.0	50~100		0.65	5.0-6.2	0.023	RST3
TC232-50	200-1200	5.0	50	0.45	1.70/70	6.3	6.3-100	3.0	4.0	50~100		0.52	5.0-6.2	0.023	RST3
TC242-63	200-1200	7.0	63	0.40	1.70/89	6.3	6.3-100	3.0	5.0	50~100		0.44	9.0-11	0.050	RST4
TC242-80	200-1200	7.0	80	0.50	1.70/113	6.3	6.3-100	3.0	5.0	50~100		0.34	9.0-11	0.050	RST4
TC151-100	200-1200	10	100	1.0	1.55/140	6.3	6.3-100	3.0	300	50~100		0.22	10-20	0.165	RST5
TC151-125	200-1200	10	125	1.2	1.64/180	6.3	6.3-100	3.0	300	50~100		0.22	10-20	0.165	RST5
TC161-160	200-1600	15	160	1.8	1.65/225	6.3	6.3-100	3.0	300	50~100		0.14	20-30	0.250	RST6
TC161-200	200-1600	15	200	2.0	1.50/290	6.3	6.3-100	3.5	300	50~100		0.14	20-30	0.250	RST6
TC171-250	200-1600	25	250	3.0	1.60/350	25	6.3-100	3.5	300	50~100		0.10	25-35	0.440	RST7
TC171-320	200-1600	25	320	3.3	1.40/450	25	6.3-100	3.5	300	50~100		0.10	25-35	0.44	RST7

China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, our company has been devoted to provide the high quality semiconductor products for our customers all over the world.
Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
