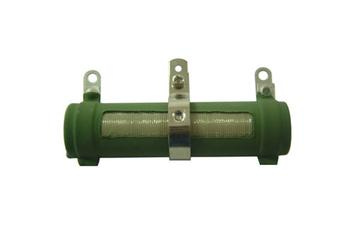

RX20 Adjustable Coating Wirewound Resistor

Name: RX20 Adjustable Coating Wirewound Resistor
Brand: china-manufacturer-directory.com
SKU: 697731125
Availability: InStock
Rating: 4.4 (150 reviews)

Price:	US $ 0.3-10/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	RX20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Rated Power:	30W-1000W
Resistance:	Variable Resistor
Function For Resistance:	Load Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Throught Hole
Type:	Humidity Sensitive Resistor
Brand:	Liwang

Product Description

RX20 Adjustable Coating Wirewound Resistor
Variable resistor
1. ZG11 enamel wire wound resistor has a lot of types.
2. Resistance tolrrance: 5%(J)10%
RoHS certification

type

rated power(W)

resistance range(Ω)

Dimensions(mm)

fixed type

adjustable type

RX20-8

5.1-3.3K

35±1.5

14±2

5.5±0.5

28.5±2.5

3.5±0.8

4.5

RX20-10

5.1-10K

5.1-200

41±1.5

14±2

5.5±0.5

28.5±2.5

6±2

3.5±0.8

4.5

RX20-16

5.1-10K

5.1-220

45±1.5

17±2

8±0.5

31±2.5

6±2

3.5±0.8

4.5

RX20-20

5.1-10K

5.1-220

51±2

17±2

8±0.5

31±2.5

6±2

3.5±0.8

4.5

RX20-25

10-24K

10-510

51±2

21±2.5

12±0.6

35±2.5

6±2

3.5±0.8

4.5

RX20-30

10-30K

10-1K

71±2.2

21±2.5

12±0.6

35±2.5

6±2

3.5±0.8

4.5

RX20-40

20-51K

20-1.2K

87±2.2

21±2.5

12±0.6

35±2.5

6±2

3.5±0.8

4.5

RX20-50

20-51K

20-1.2K

91±2.4

29±3

20±1.1

43±3

7±2

4.5±1

2.5

RX20-75

24-56K

20-1.5K

140±3.2

29±3

20±1.1

43±3

7±2

4.5±1

2.5

RX20-100

100

20-62K

24-2.7K

170±3.5

29±3

20±1.1

43±3

140

7±2

4.5±1

2.5

RX20-150

150

20-150K

20-4.3K

215±4

29±3

20±1.1

43±3

185

7±2

4.5±1

2.5

Item	Tested	Requirements
Resistance series tolerance	AC1500V 1 minute	E24 ± 5%± 10%
Dielectric Strength (only insulation type)	DC500V 1 minute	No flashover insulation breakdown
Solder ability	265 ± 5%, 2S+0.5S 1.5-2.0mm	> 20MΩ /C
Terminal Strength	10N 10S5S	R≤ ± (1%R+0.05Ω ) Covered withnew solder by 95% at least NO damage
Short time overload	5Xrated power 5S	R≤ ± (1%R+0.05Ω )
Solding heat	350± 10, 3-3.5mm	R≤ ± (1%R+0.05Ω ) No damage
Vibration	10-500Hz, 0.75mm, or 98m/s 2 x/y/z/All 6h	R≤ ± (1%R+0.1Ω ) No damage
Load life	1.5h on 0.5h off 1000h	R≤ ± (5%R+0.1Ω ) R> 1GΩ
Moisture	RH90-95% 40 96h	R≤ ± (5%R+0.1Ω ) R≥ 20MΩ /C

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment".
