Product Specifications
| Prod Model: |
RXF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Environmental Certification: |
ISO14000 |
| Quality Certification: |
ISO9001: 2008 |
| Safety Certification: |
CQC 03003095~3097 |
| Other Certification: |
RoHS |
| Resistance: |
Fixed Resistor |
| Installation: |
DIP Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Throught Hole |
| Type: |
Fuse Resistor |
| Brand: |
Liwang |
Product Description

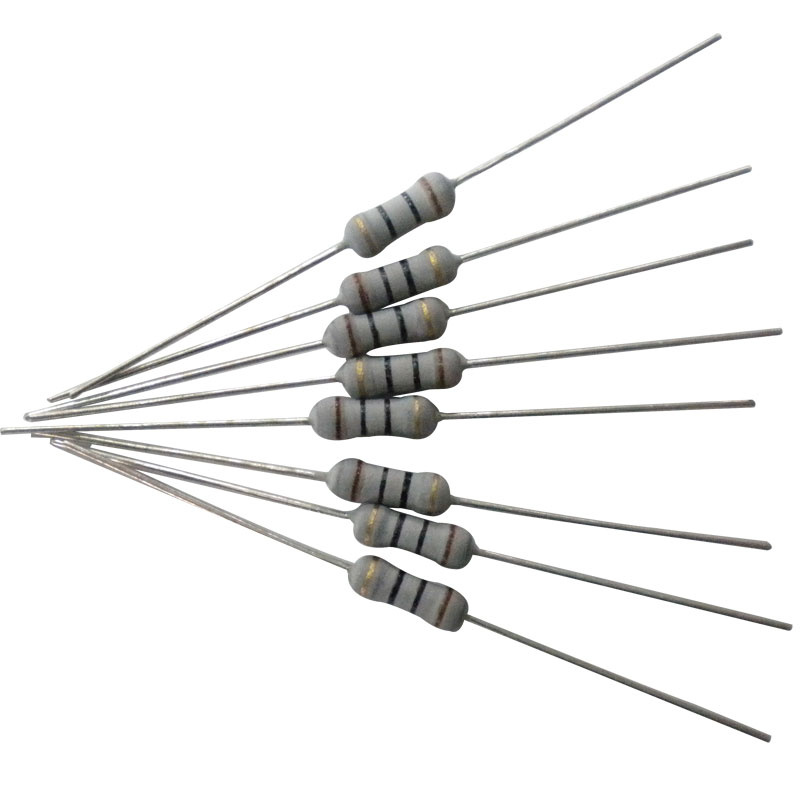

Rxf Wirewound Fuse Resistor with UL (RXF)
1, Style is your market
Used for power industry to protective circuit.
2, Selling point
1)Prompt delivery;
2)Variety of packing: Bulk or tape in box;
3)Stable performance, extensive resistance, small size, high operating temperature and high ultimate voltage;
4)Factory direct price;
5)None forbidden.
3, Description
1)High quality;
2)Meet performance requirement of CNS 2320, JIS 6402;
3)Standard tolerance: 5%. ( 1% Available );
4)Ceramic core. (High conductivity);
5)Mtal film. (High stability);
6)End cap (High reliability fitting by original cap-pressing method);
7)Epoxy resin (Insulative lacquer, solvent-proof);
8)Color code (Per MIL & EIA standards);
9)Lead wire (Excellent solderability);
10)OEM;
11)The normal size coating is yellow and the small size coating is pink.
4, Function
To protective circuit.
5, Advantage
1)Factory direct price;
2)All materials & machines imported from Taiwan;
3)RoHS compliant & ISO9001(2008);
4)Prompt delivery;
5)None forbidden.
| TYPE | DIMENSION(mm) | MAX.
WORKING VOLTAGE(V) | MAX.
OVERLOAD VOLTAGE(V) | INSULATION RESISTANCE TO VOLTAGE(V) | RESISTANCE TOLERANCE | RESISTANCE RANGE(OHM) |
L
± 1 | D
± 1 | H
± 1 | d± 0.05 | MIN. | MAX. |
FUSE
1/4W, 1/2WS | 6.5 | 2.3 | 26 | 0.5 | 150 | 3times of rated voltage | 250 | J(± 5%) | 0.1Ω | 1KΩ |
FUSE
1/2W, 1WS | 9.5 | 3.2 | 25 | 0.56 | 250 | 3times of rated voltage | 300 | J(± 5%) | 0.1Ω | 1KΩ |
FUSE
1W, 2WS | 12 | 4.5 | 31 | 0.75 | 250 | 3times of rated voltage | 350 | J(± 5%) | 0.1Ω | 1KΩ |
FUSE
2W, 3WS | 16 | 5 | 33 | 0.75 | 250 | 3times of rated voltage | 350 | J(± 5%) | 0.1Ω | 1KΩ |
FUSE
3W, 5WS | 18 | 6 | 33 | 0.75 | 300 | 3times of rated voltage | 350 | J(± 5%) | 0.1Ω | 1KΩ |
![]()
![]()
![]()
