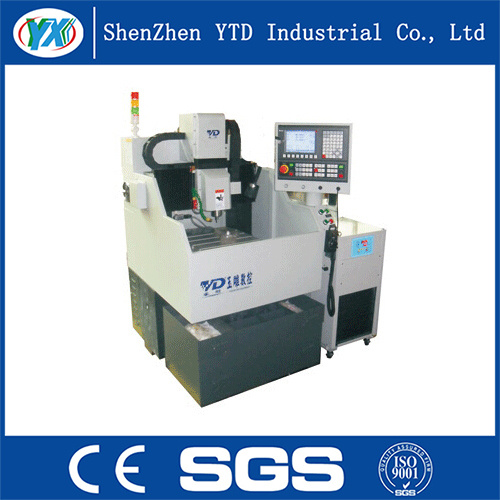

RY-400G CNC Highlight Engraving Machine for Mobile Phone
Characteristics and Application
1. Characteristics:
a. The natural marble structure, guarantee the stability of machine tool processing;
b. X, Y, Z three axis adopt high precision imported Taiwan H level of silver rectangular linear guide, strong load bearing capacity, high precision;
c. High precision grinding C3 level screw to ensure long time mechanical error is small;
d. The fitting precision of high demand, screw guide assembly error is less than 0.01 mm;
e. Equiped with water-cooling spindle cooler, to ensure that the spindle at high speed for a long time no fever, no rust, not blocking the spindle, durable;
f. Lathe bed independent lubrication system design, to ensure that the moving parts durable;
g. Equipped with external switch, simple to operate.
h. Imported high precise floatation 100000 turns spindle.
2. Application industry:
Mobile phone, digital products highlight processing
Parameters
Table dimension | 400*400mm |
| Working Stroke for X,Y,Z | 400*400*90mm |
| Max speed of movement | 24m/min |
| Max processing speed | 12m/min |
| System configuration | Taiwan Baoyuan LNC |
| Position tolerance of X,Y,Z | minus&plus 0.008/300mm |
| Repeatability tolerance of X,Y,Z | minus&plus0.008mm |
| Table flatness | minus&plus 0.015/300mm |
| Perpendicularity for X,Y | 0.01/300mm |
| Height of Z | 150mm |
| Automatic Tool Changer | 6 |
| Spindle Power | 1200W |
| Spindle RPM | 20000-100000RPM |
| Drying-System | Servo |
| Working voltage | One phase
220V/50Hz minus&plus 10% |
| Machine weight | 1600 KG |
| Overall dimension | 900*850*1600mm |
Above parameters are demarcated by laser interferometer, British RENISHAW laser instrument.
About us:
Shenzhen YTD Industry Co., Ltd is a supplier that specializes in developing, designing and manufacturing all kinds of automatic machine serves FPC. Currently we have full-automatic FPC laminating machine,automatic stiffening laminator, manipulator for stamping machine, ICT/FCT functional jig, complete of testing solution, micro-needle module test jig and bending, bevel, hot-pressing, laminating, vacuum adsorption, no-automatic jig etc.
Our company was established in 2003, after more than 10 years of development, we have many advanced processing and testing equipments, such as precise CNC imported from Japan, precise carving machine, corrosion machine, detector, 2D measuring instrument, CNC milling machine, grinder, laser machine, automatic variable machine, powerful CNC microscope etc.
By virtue of strong development power, high-end equipments and well-knit organization structure, strict details management, complete team support, excellent after-sales service, our reputation and development has ranked top in the industry.
Quality policy: quality is our soul, we adhere strictly to ISO 9001 quality management system. We pay attention to every detail, take care of every detail, try our best to be excellent.
Excellent products, credibility first, win-win cooperation----- YTD will always be your most sincere partner.
Should you have any further questions, please feel free to contact us, we are glad to be at your service.
