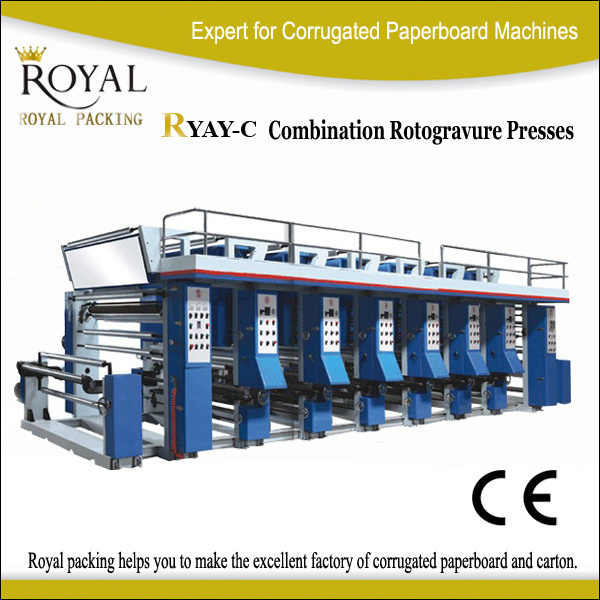

Ryay-C Model Commonly Series of Combination Rotogravure Presses
Price: |
US $ 100/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal |
Product Specifications
Prod Model: |
RYAY-C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max. Width Of Unwinding: |
1100-1600mm |
Max. Diameter Of Unwinding: |
1400-1600 |
Min. Width Of Slitting: |
30mm |
Max. Diameter Of Rewinding: |
800mm |
Speed: |
10-160m/Min |
Style: |
Screen-process Printing Press |
Structure: |
Rotary Printing Press |
Color & Page: |
Multi-Colour Printing Press |
Print Interface: |
USB2.0 |
System Supported: |
Windows2000 |
Product Description
RYAY-1050E Series Computer Gravure Press
(Keywords: Gravure press, Gravure printing machine, Film printing machine, Gravure printer, Rotogravure Printing Machines)
Introduction:
We provide many kinds of Rotogravure Printing Machines: Model series of Computer High Speed gravure Press.
1. Adopting frequency vector conversion motors control the main motor, unwinding and rewinding, and tension of them.(seven motors controlled)
2. Lengthways and transverse accuracy are controller by the full automatic registering device, as well as the advance lengthways accuracy function.
3. Video frequency system is in staled.
4. Non-shaft pneumatic conic node printing plate loading, prompt and convenient printing plate when change.
5. Sealed hot wind circulating oven, automatic constant temperature, diesel oil air-stove or electrical heating for the drying methods.
6. Pneumatic draw knife, single motor controls the moving way, the moving frequency is adjustable.
7. Holistic moving oil frame, turning the ink in the barrel with the rubber rollers, pneumatic pump circulation.
8. High accuracy gear transmission box, adopting patented technique.
9. Unwinding and rewinding both worked by the dual-station mechanism, realizing auto material change without machine halt at high speed, adopting the neumatic rollers for the draw in and out.
Main Technical Parameters:
Model | RYAY -850E | RYAY -1050E | RYAY -1250E |
Effective printing width | 800mm | 1000mm | 1200mm |
Max. Width of web | 850mm | 1050mm | 1250mm |
Max. Printing speed | 150m /min | 150m /min | 150m /min |
Max. Mechanical speed | 180 m /min | 180 m /min | 180 m /min |
Max. Diameter of unwind/rewind | 600mm | 600mm | 600mm |
Inside diameter of roll core | 76mm | 76mm | 76mm |
Diameter of printing cylinder | 120~360mm | 120~360mm | 120~ 360mm |
Accuracy of computer registration | ± 0.1mm | ± 0.1mm | ± 0.1mm |
Tension control range 20~50kg/full width | 20~50kg /Full Width | 20~50kg /Full Width | 20~50kg /Full Width |
Heating power of oven | 120Kw | 144Kw | 234Kw |
Total power | 181Kw | 205Kw | 266Kw |
Weight of machine | 31000kg | 34000kg | 37000kg |
Overall dimension | L18000×W3800 ×H 3100mm | L18000×W4000 ×H 3100mm | L18000×W4200 ×H3100mm |
