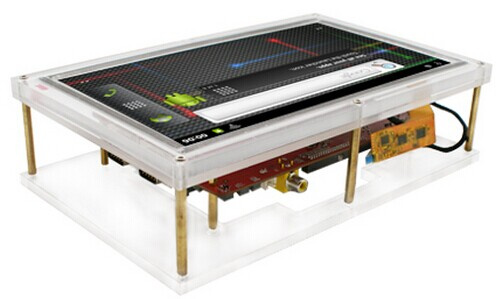

S5PV310 Cortex A9 Development Board for Single Board Computer

CES-V310 Hardware Configuration:
CPU Model: Samsung S5PV310 Exynos 4210 (Orion)
CPU type: Synchronous dual-core processor
CPU frequency: Two general-purpose processingcore, 1GHz or 1.2GHz
CPU architectures: Cortex-A9
CPU Process: 45nm process technology
CPU instruction cache: 32KB
CPU data cache: 32KB
CPU secondary cache: 1MB
Graphics: ARM Mail (Quad)
2D/3D: Support
DDR3: 2.0GB, Samsung K4B2G164
Oscillation circuit: High-precision clock oscillatorcircuit
Power IC: Use high-efficiency power management IC
Precision interface: Using 0.4mm Precision Interfacesocket, CPU signal and power are all leads, with the advantage
Of access toquality, reliability, high stability, the signal lossless transmission
FLASH(iNAND): 2.0GB, Samsung K4B2G164, 8 pieces. Cost-effective
WiFi module: Built-in WI-FI module, 802.11 b / g
GPS module: Built-in GPS module, using the SIF III
HDMI interface: HDMI1.3, one channel
VGA display interface: GM7123, used for digital videosystem (1600 * 1200 @ 100Hz)
LVDS display interface: SN75LVDS83A, 4 group ofdifferential signal output
Capacitive touch screen interface: Support multi-touchcapacitive screen, one channel
TTL display interface: 24 TTL RGB digital interface (LCDA interface), one channel
Audio: I2S signal, use Wolfs WM8994, stereo input /output
BUS level-shifting circuit: Memory (EBI)level-shifting circuit
USB2.0 HS OTG: OTG 2.0, one channel
CMOS Camera Interface: Support camera(Camera A interface)
TV OUT Interface: Analog signal output, one channel
UART interface: Five channels, 256byte FIFO forUART0, 64 byte FIFO for UART1, 16 byte FIFO for UART2/3/4
SD/HSMMC: 4 channels, used for iNAND, MMC / SD, WiFi
Ethernet: 1 channel, 10M/100M Adaptive cableinterfaces
USB HOST(HUB): Four USB HOST interfaces, use forvarious USB devices (keyboard, mouse, BT, etc. )
E2PROM: Two channels
SERIAL FLASH: Serial FLASH Interface, 1 channel
Reset circuit: Use high reliability reset circuit
LED work indicator circuit: Use ultra bright workinstructions LED
External power supply: 12V/3A DC power input
Scan keypad: 2 * 5 keypad, can be extended
Function keys: Power button, reset button, interruptbutton, etc
Extended Interface: MIPI-DSI interfaces, 2 channels
MIPI-CSIInterface 2 channels
LCDB Interface
CameraB Interface
KeyboardExtension Interface
HSSPI Interface, 3 channels
SRPJTAG Debugger Interface
PTMDebugger Interface
SATAinterface
PCIEinterfaces
NANDFLASH Interface
TSITest Interface
PWMITest Interface
Variousinterrupt interface
And other User extended interfaces
WiFi Module: Built-in expansion board
GPS Module: Built-in expansion board
3G Module: WCDMA
Bluetooth Module: Support Bluetooth module USBinterface
Wireless keyboard and mouse: USB interface
10.1-inch capacitive multi-touch screen: Use 10.1-inchLCD screen, resolution 1024 * 600, LVDS interface;
Use goodixs multi-touch IC
7-inch resistive touch screen: Use 7-inch LCD screen, resolution 800 * 480, TTL interfaces, LED backlight,
16: 9 wide screen, 16.7Mtrue color, four-wire resistive touch screen
