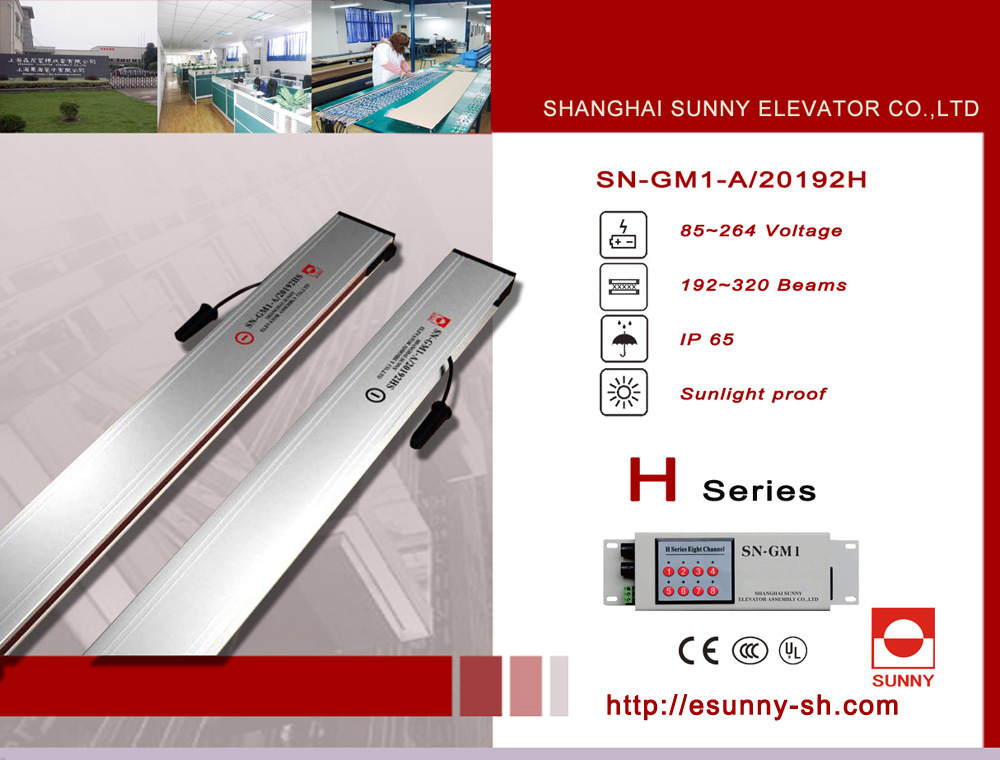

Safety Light Curtain Sensors (SN-GM1-A/20 192H )
Description
SUNNY elevator light curtain H series has obtained national invention patent (No. ZL01105213.9), which is widely used in luxury elevator and is famous for its 8-channel special design, which means any one can make urgent repair by pushing the blinking switch on the control box to avoid great inconvenience to the elevator users when some diode is broken.
SUNNY light curtain, with 64 pairs of diode inside, 192 beams and 10 ms quick response time, is much safer and much more reliable than the product in the market, which ensure the safest protection area even the door is nearly closed ( door width is under 300mm).
About us
Shanghai Sunny Elevator Co., Ltd, is located in Shanghai China. We are a 22-year professional manufacturer specialized in designing and producing elevator parts with ISO9001 certification. We have fine quality management team and always offer our clients high quality and reliable products. Our turnover in 2013 is 5,000,000 USD.
We offer 3 year quality guarantee for all products. Our main products are: Elevator Light Curtain, Elevator Buttons, Photoelectric Switch, Elevator Display, COP & LOP, Traction Machine , Door Mechanism. And we provide best prices on: Guide Rail, Guide Shoe, Counterweight Filler, Rope fastening, Wire Rope, Safety Gear, Speed Governor, Oil Buffer, Maintenance box, Emergency leveling device, Elevator Intercom, Limit Switch, Fans and other parts for elevator.
Our long time clients include Hyundai (served as OEM), Hitachi, Otis, Mitsubishi, KONE, Guangri Elevator, WITTUR elevator etc.
OUR TEAM
Specification |
Model |
192H |
320HG |
No. of diodes |
64 |
64 |
Max. beams |
192 |
320 |
Min. beams |
192 |
192 |
Distance between Two Diodes |
emitter/ receiver 42/ 55 mm |
Size |
1980 height x 30 width x 9/16/35 thickness mm
Hitachi/ Mitsubishi/ Toshiba 2 in 1 light curtain available |
Light curtain Detecting Distance |
0~4.5 meters Customized to reach 20 meter |
Light-proof |
can work under the sunlight ≥100,000 lux |
Installation Tolerance |
Vertical ≤±20mm, horizontal ≤± 10mm, angle ≤±7° |
Working Temperature |
-25°C~+65°C |
IP |
Ip33 circuit strip Ip63 controller box |
Response Time |
≤80 ms |
Cable Strength |
3C, 4.5M*2, 1 million times of life |
EMC |
En61000 GB/T17626 |
Timeout Response |
25±5s Buzzer rouse |
Power |
≤7.5 VA |
Voltage Range |
85~264VAC 60/50Hz |
Shanghai Sunny Elevator Assembly Co., Ltd., founded in 1992, is a 20-year experienced professional manufacturer specializing in designing and producing opto-mechanical products. Our main products are elevator light curtain, photoelectric switches and elevator buttons. Our company has a complete set of equipment and instruments in terms of mechanism, sheet metal, plastics, moulding, electric appliance, together with SMT line, which are respectively used in key parts of production, assembling and quality detection. Such full range of equipments is rare in the field and greatly increases our production flexibility and R&D capabilities. Twenty years' experience in the elevator industry ensures us to provide our clients reliable products, leading-edge technology and perfect after-sales service.
Since 2001, Shanghai Sunny Elevator Assembly Co., Ltd. has won the title of "Shanghai High and New Technology Enterprise" for nine successive years. The light curtain SN-GM1 series products have passed the certifications of UL, CE and 3C, and light curtain core technology has obtained national invention patent ( NO. ZL01105213.9). We are also the first to pass the certification of light curtain 3C in China. Our level detecting, reflective and diffuse photoelectric switch products have also the certification of CE. Standardized, general and energy-saving door linkage mechanism has obtained national utility model patent. At the beginning of 2010, the invention of wireless infrared light curtain obtained national invention patent application, which proves that our company has stood in the worldwide forefront in the field of elevator light curtain technology.
Shanghai Sunny Elevator Assembly Co., Ltd. Has established friendly business relationships with worldwide elevator industry, and its products have been exported to over 50 countries in Middle East, Europe, South Asia, south America and north America. Looking into the future, we are full of confidence and will shoulder heavy responsibilities.
In the spirit of "Lasting Quality, Persistent Innovation, Credit Supreme", Shanghai Sunny provides service for all friends forever.
