Product Specifications
| Prod Model: |
UR4B135HX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use For: |
Split Air Conditioner |
| Type: |
Rotary |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Lubrication Style: |
Oil-less |
| Application: |
Back Pressure Type |
| Mute: |
Not Mute |
Product Description

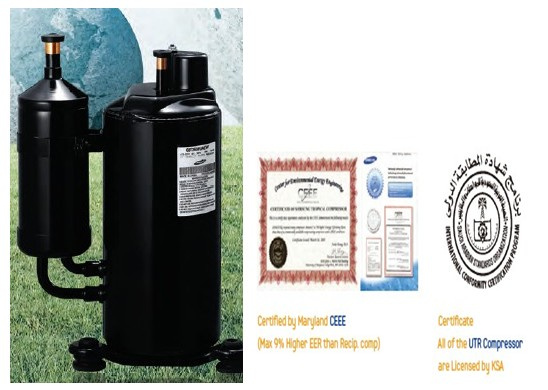

Samsung rotary compressor/ rotary compressor/ compressor/ compressor for air conditioner
Voltage:
115V, 601 208 230V,
601 200 220V,
501 220 240V,
501 220V, 501 127V,
601 100V, 50/601 265V,
603 115V, 60(44F AC INV)3 125/130V,
60(48F AC INV)3 380 440V,
603 380 420V,
503 220V, 603 BLDC(ND)3 BLDC(Ferrite)
Adopt high efficiency pump
High Precision process parts and assembly
15Hz ~ 120Hz Variable Control
Sine wave control available
Adopt the Optimized Muffer structure
Adopt the coating material to improve reliability
Reduction the oil circulation
Upgraded UTR
Reduced Motor Temperature
Upgraded Pump Reliability
Reduced Noise Level
Improved Protection Ability
Our company Introduction
Engaging in A/C & Refrigeration market for more than 15 years, we will offer you the best products with most professional service.
Our company supplyone way solution to HVACR. Our products have been exported to many countries with high quality and competitive price.
We can manufacture/ service following components mainly, from our own KTN factory and cooperation factories.
§ Rotary / Scroll / Screw Compressor
§ PCB / Inverter Controller Board
§ Refrigerant & Refrigerant Oil
§ Copper Tube / Connecting Pipe / Copper fitting
§ Parts for P&T Control
§ 4 Way Reversing Valve
§ Filter Driers
§ Capacitors
§ Motors
§ Tools
§ Installation & Service Material
§ AC Contactor & Relay
§ Seperator & Receiver
For compressor, we are strategy cooperating with SIAM, HIGHLY, DAIKIN, SANYO, HITACHI, COPELAND, DANFOSS, LG, MITSUBISHI, Samsung, Panasonic.
Besides, take a reference of our web-site: www.cn-vestar.com. (If any interest, feel free to Contact Us. )
|
Ref. |
Power source |
Model |
Displacement |
Cooling Capacity |
EER |
COP |
Input |
Oil Charge |
Net Weight |
|
cc/rev |
Btu/h |
W |
Btu/Wh |
W/w |
W |
cc |
kg |
|
R22 |
60hz |
1ø 115v |
UR9A060HS |
8.7 |
6,000 |
1758 |
10.5 |
3.08 |
571 |
210 |
7.5 |
|
UR9B072HS |
10.2 |
7,050 |
2,066 |
10.6 |
3.11 |
665 |
230 |
8.1 |
|
UR9B080HS |
11.3 |
8,000 |
2,345 |
10.6 |
3.11 |
755 |
230 |
8.3 |
|
UR9C052HS |
7.6 |
5,300 |
1,553 |
10.8 |
3.16 |
491 |
210 |
7.3 |
|
UR4A092HU |
13.2 |
9,350 |
2,740 |
10.7 |
3.14 |
874 |
300 |
10.2 |
|
UR4A098HU |
14.1 |
10,100 |
2,960 |
10.8 |
3.17 |
935 |
300 |
10.5 |
|
UR4B110HN |
16.1 |
11,550 |
3,385 |
10.6 |
3.11 |
1,090 |
340 |
11.8 |
|
UR4B117HX |
16.6 |
11,900 |
3,488 |
10.7 |
3.14 |
1,112 |
340 |
11.9 |
|
UR4B124HX |
17.6 |
12,650 |
3,707 |
10.7 |
3.14 |
1,182 |
340 |
11.9 |
|
UR4B135HX |
18.7 |
13,400 |
3,927 |
10.6 |
3.11 |
1,264 |
340 |
11.9 |
