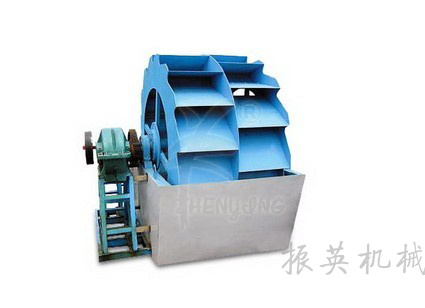

Sand Washing Machine (XS)
| Price: |
US $ 6000-28000/Set |
| Trade Terms: |
25days After Received Payment |
| Min Order: |
1Set |
Product Specifications
| Prod Model: |
XS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
30-160t/H |
| Design: |
Innovation |
| Certificate: |
ISO 9001: 2008&CE |
| Advantage: |
Less Stoppage |
| Warranty: |
6 Months |
| Application: |
Sand Cleaning |
Product Description
Introduction
XS series sand washer, with wheel structure, is the compulsory sand washing product for sand making machine. It can wash stone powder and residual away from the mixed sands produced by sand making machine, improve the sand quality mostly. XS sand washer, adopting advanced technology and taking the stone sand industry's practical condition into consideration, is applied to wash, grad and dehydrate in sandstone factory, construction site, hydroelectric station dam, glass manufacturing and oil well development. These series sand washers are character as high clean ratio, reasonable structure, low power, less sand away. Especially, the moving parts are separated from the water and water, so the stoppage is greatly less than the traditional machine, and it is the first choice for sand washing
Working principle:
Our sand washing machine is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand. Its new seal-structure and reliable driving device can make sure the cleaning effect and a kind of high efficiency sand washing equipment matched with the sand making machine.
Features:
Reasonable structure,
Large capacity,
Low consumption,
Little loss of the sand during the washing process,
Low failure rate...
|
Mode |
Wheel diameter
(mm) |
Feeding particles
(mm) |
Output
(t/h) |
Power
(KW) |
Weight
(kg) |
Dimension
(mm) |
|
XS 2615 |
2600× 1500 |
≤ 10 |
30-80 |
7.5 |
2700 |
3320× 2200× 2670 |
|
XS2900 |
2900× 1000 |
≤ 10 |
50-100 |
7.5 |
8100 |
3820× 2640× 3200 |
|
XS3016 |
3000× 1600 |
≤ 10 |
80-160 |
18.5 |
4300 |
4500× 3206× 3480 |
|
XS3500 |
3500× 1000 |
≤ 10 |
120-600 |
11 |
9900 |
4420× 2930× 3800 |
Established in October 2008, located at Xinxiang Hi-tech Industry Park, southern section of Xinfei Road, Xinxiang Zhenying Mechanical Equipment Co., Ltd is a manufacturer specializing in vibrating sieve, vibrating screen/filter/separator/shakers with total capital of 5 million Yuan and a long term R & D team of middle rank and senior engineering technical personnel and skilled workers, including, we have 86 staffs at present, including 2 senior engineers, 5 engineers, 12 technicists. with advanced manufacture process and testing equipment, as well as strict QMS, we are always producing high quality products. We have gained ISO9001: 2008 and CE certification, as well as the right to import and export.
Our main products include 7 series of round, tumbler screen, intermediate frequency screen, linear vibrating screen, mining screen, conveyers, air-jet sieve etc. with more than 130 different specifications. We have 4 offices across the country to do marketing, spare parts supply, and service for pre-sales, sales and after sales. Presently our products are running through out the country and are exported to
Asia\Europe\America\Africa etc. And received highly praise from customer with high quality and favorable after sales service.
Since the establishment, we always take "technological innovation" as the foundation of foothold. Our engineers do analytical investigation to every product series in company with experts from Beijing, Shanghai, and Xi'an colleges and universities, adopt advanced technology and equipment, combined with humane management, we devote ourselves to producing environmental-friendly and energy saving sieving equipment of high efficiency. Our sieving equipment is a combination of numerous high and new technologies, which can not only increase output, reduce energy consumption, save cost, but also control the pollution during sieving process effectively. Our products are widely used in food industry, medicine industry, and chemical industry, metallurgy industry, abrasive material industry, plastic industry, ceramics industry, glass industry and coating industry etc.
Zhenying people are always producing high quality products with "Advanced Technology, Making Better, Satisfy Customers' Needs" quality policy, making zealous and efficient service to our customer with the style of "Rapid Response, Rapid Action".
