Product Specifications
| Prod Model: |
RXHG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage Range: |
0.5kv-10kv |
| Rated Power: |
60W-2000W |
| Temperature Coefficient: |
375 |
| Drift: |
80-400ppm / Degrees |
| Resistance Tolerance: |
5%-10% |
| Resistance Range: |
1r-1kr |
| Resistance: |
Fixed Resistor |
| Type: |
Humidity Sensitive Resistor |
| Installation: |
SMD Resistor |
| Function For Resistance: |
Load Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Throught Hole |
| Brand: |
Sanyu |
Product Description
![]()

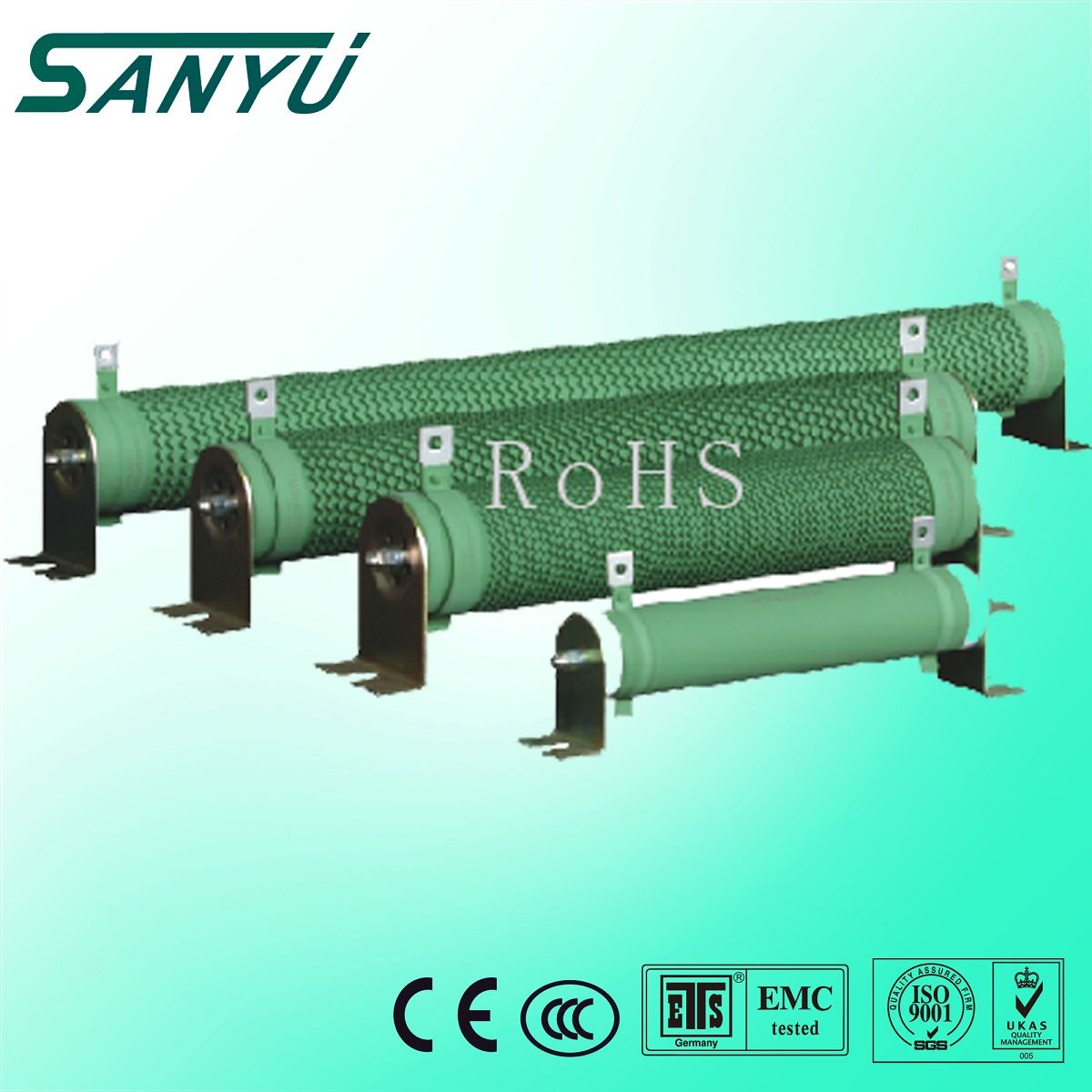

Sanyu Bellows Power Fixed Resistor (RXHG 50W-2500W 1ohms-1000ohms)
Bellows resisitors, resistors, power resistors
High-tech, good quality, good service
Bellows resisitors, resistors, power resistors
High-tech, good quality, good service
Technical paremeters
Power range: 50W-2500W
Voltage range: 0.5KV-10KV optional
Resistance range: 1R-1KR
Pressure: AC2.5KV-20KV/1min 50Hz optional.
IP rating: IP00
Vibration: 1g.
Rated temperature rise: 375 degrees.
Drift: 80-400ppm/degrees
Fluid contained material: 0Cr25AL5/Ni80Cr20 optional.
Advantages: High-voltage work
Disadvantages: Less seismic
Packing: Carton packaging
Rated power
(w) specification (mm)
L1(± 2) L2(± 5) L3(± 3) D(± 2) B B1 H H1(± 3) N d O
50 102 124 146 28 6.5 28 28 61 10 4.5 1.2
60 102 124 146 28 6.5 28 28 61 10 4.5 1.2
80 152 174 196 28 6.5 28 28 61 10 4.5 1.2
100 182 204 226 28 6.5 28 28 61 10 4.5 1.2
120 182 204 226 28 6.5 28 28 61 10 4.5 1.2
150 195 217 239 40 8 40 41 81 12 5.5 2.0
200 195 217 239 40 8 40 41 81 12 5.5 2.0
300 282 304 326 40 8 40 41 81 12 5.5 2.0
400 282 304 326 40 8 40 41 81 12 5.5 2.0
500 316 338 360 50 8 50 45 101 16 6 2.0
600 345 367 389 40 8 40 41 81 12 5.5 2.0
750 316 338 360 50 8 50 45 101 16 6 2.0
1000 300 325 350 60 8.5 60 60 119 16 6 2.0
1200 415 440 465 60 8.5 60 60 119 16 6 2.0
1500 415 440 465 60 8.5 60 60 119 16 6 2.0
2000 510 535 560 60 8.5 60 60 119 16 6 2.0
2500 600 625 650 60 8.5 60 60 119 16 6 2.0
