Product Specifications
| Prod Model: |
0211 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
0.5m/1m/2m or at Will |
| Color: |
Black/Red/Blue |
| USB Type: |
Standard |
| Type: |
Twisted Pair |
| Connector: |
SATA7+15p |
| Jacket Material: |
PVC |
| Data Transfer Rate: |
6.0gbps |
| Certificate: |
UL.RoHS |
| Material: |
Copper |
| Interface Type: |
SATA |
| Pin: |
>10Pin |
| Application: |
Computer |
Product Description

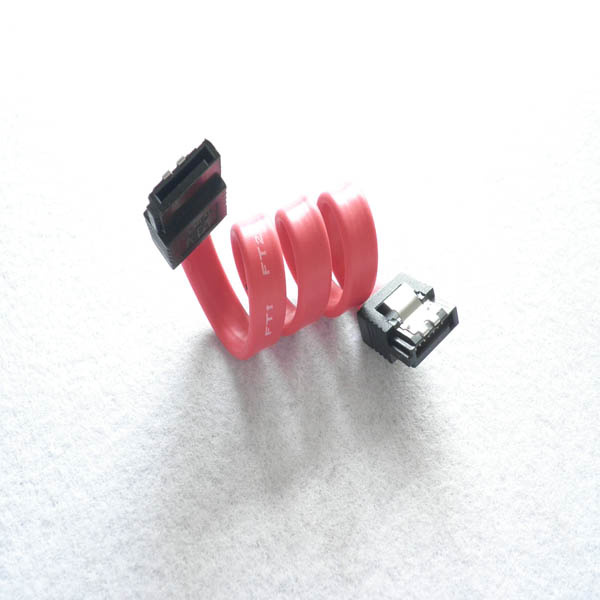

SATA7P Coiled Computer Cable:
Detailed Description:
1. Slimline SATA cable
2. ESATA 7P
3. Housing: VC, LCP
4. Terminal: Hoshpor Bronze or gold plated
5. Singnal Wire: L2725 26/28 AWG, Tinned Copper
6. Power cable: L1007 18/20 AWG, Tinned copper
Electrical:
1. Hi-Pot Test: DC300V
2. Insulation Resistance: 0M Ohms(min)
3. Contactor Resistance: 1 Ohms(Max)
4.100% Open Short and Miss Wire Test
Technology Data:
1. Insertion Force: 45N Max
2. Withdrawal Force: 15N Min
3. Operating Temperature: -25oC to +85 oC
4. Transfer Rate: Supports 3.0Gbps
