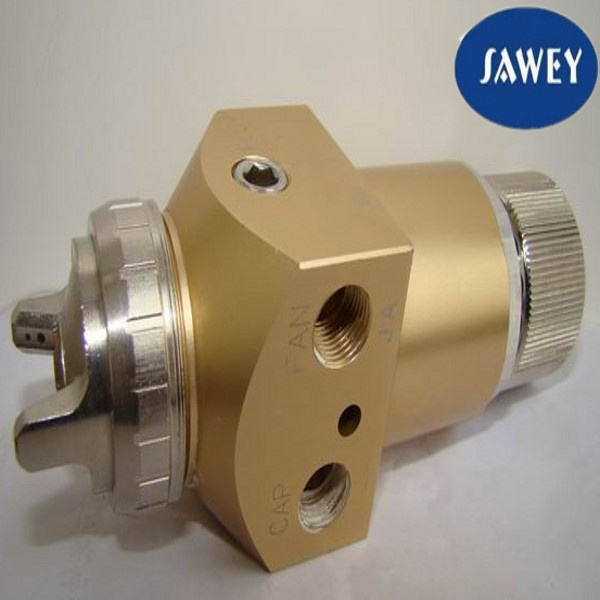

Sawey Wra-101 Auto Paint Spray Gun for Robot Machine 0.8/1.0mm Compact Type
| Price: |
US $ 79.6-118/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
WRA-101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gun Body Material: |
Aluminum Alloy |
| Nozzle Size: |
0.8/1.0mm |
| Nozzle Material: |
Stainless Steel |
| Gun Type: |
Compact |
| Type: |
High Pressure Gun |
| Usage: |
Paint Spray Gun |
| Working Style: |
Reciprocating Type |
Product Description
Features
With central air and corner air controlled separately, the pattern width can be changed remotely during coating, reducing overspray.
A paint circulation mechanism is employed for metallic paint and other types of paint that deposits rapidly.
The compact body is easy to install in limited space. The gun can be used with not only coating robots but also other types of apparatus such as automatic coating equipment.
Caution
This automatic spray gun does not have an air valve. See the system diagram below.
The joint is an example of a commercially available product.
Our WRA-101 and？LRA-200 series guns are designed？for remote fan control and fluid？circulation for specific materials？that rapidly settle and require continuous circulation.
We do OEM for any brand u provide on spray guns & we export in most favorable price & terms to countries all over the world.？
|
SAWEY BRAND |
|
ITEM |
WRA-101-082P |
WRA-101-101P |
LRA-200-082P |
LRA-200-101P |
|
Type of feed |
PRESSURE |
|
Fluid nozzle ( Ø mm) |
0.8 |
1.0 |
0.8 |
1.0 |
|
Spray distance (mm) |
200 |
|
Air pressure at gun inlet (MPa) |
atomizing air |
0.26 |
0.20 |
0.14 |
|
pattern air |
0.22 |
0.16 |
|
Air pressure in air cap (MPa) |
\ |
|
Air consumption (L/min) |
270 |
500 |
|
Fluid output (ml/min) |
150 |
200 |
150 |
200 |
|
Pattern width (mm) |
190 |
220 |
250 |
280 |
|
Applied air cap model |
E2P |
G2 |
|
Required air compressor (KW) |
1.5 |
2.2-3.7 |
|
G.W. (g) |
337 |
355 |
|
Application |
small workpiece |
large workpiece |
small workpiece |
large workpiece |
