Product Specifications
| Prod Model: |
SC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is often a requirement in Dense Wave Division Multiplexing (DWDM) and Erbium Doped Fiber Amplifier (EDFA) applications where the receiver cannot accept the signal generated from a high-power light source.
SZ NetCom could offer three kinds of SC attenuators.
Plug-in fixed type attenuator_female to male

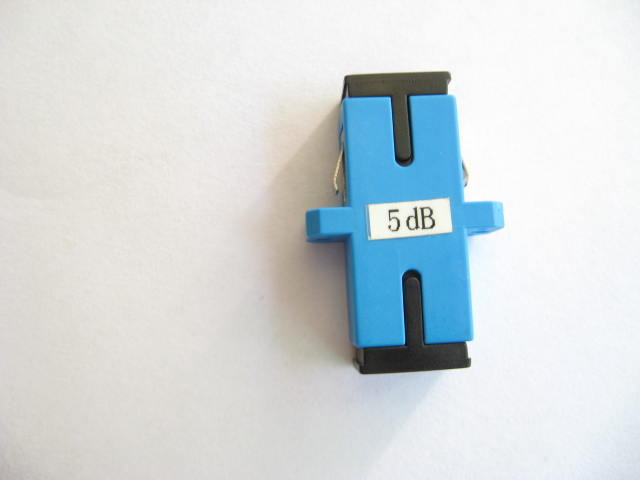

Adapter fixed type attenuator_male to male
In-line fixed type attenuator
Specification:
- Operating Bandwidth: 1240~1600nm OR 1310nm, 1550nm
- Return Loss: UPC≥ 55dB, APC≥ 65dB
- Attenuation Tolerance:
- 1~10dB± 0.5dB &10~30dB± 10%
- Vibration: 10~55Hz(2hr)
- Maxi Optical Input Power: 200mw
FEATURES
- GR-910, UL94-V0 Compliant?
- Attenuation Range: 0-30dB
- Attenuation Tolerance:
- 1~10dB± 0.5dB &10~30dB± 10%
- Available Wavelengths:
1310nm, 1550nm, 1310&1550nm
- Wavelength Dependence: <0.3dB Change in Insertion Loss for 1310-1550 Nm.
- Return Loss: UPC≥ 55dB, APC≥ 65dB
- Durable For High-Input Power
- Ideal For WDM Application
- Precise Control of Attenuation Range
- High Return Loss
- High Reliability
APPLICATIONS
- Power Level Adjustment Of Optical
- Fiber Communication Networks.
- EDFA
- Dynamic Power Leveling in Optical Add/Drop Multiplexing
- Dynamic Power Balancing in DWDM Systems
- CATV Systems
- Optical Network Equipments
- Bi-Directional Systems
|
PARAMETER |
UNIT |
FIXED ATTENUATORS |
VARIABLE ATTENUATORS |
|
Operation wavelength |
nm |
1310,1550 |
1200-1600 |
|
Attenuation Value |
dB |
±0.5dB (<10dB)
±1.0dB (>10dB) |
0-30 |
|
Max. Optical Input Power |
MW |
500 |
500 |
|
Max. PDI |
dB |
≤0.1 |
≤0.1 |
|
Return Loss |
dB |
PC |
≥45 |
|
|
UPC |
≥55 |
|
|
APC |
≥60 |
|
Operating Temperature |
|
-30~+75 |
-30~+75 |
|
Storage Temperature |
|
-40~+85 |
-40~+85 |
Shenzhen netcom technology Co., Ltd, is a highly professional and fast-developing company of Passive & Active Optical Components and FTTH system, and the factory is located in beautiful coastal industrial city-Shenzhen, China.
We provide Fiber media converter, Optical Transceiver, PLC Splitter, FBT Couplers, Fiber Optic Patch Cord, Fiber Optic Attenuator, Adapter, Connectors etc...
These years, SZ NetCom is always devoted to achieve "Quality First, Customers First" and Competitive price for the clients. All SZ NetCom's products are designed and tested to seriously meet the International Standards of Telcordia & RoHS Compliance.
Our professional R&D team and production team have excellent knowledge and work experience. We do believe that knowledge is power. We are dedicated to fulfill the needs of our customers by offering high quality products as well as prompt and reliable services.
If you are interested in any of our products, please don't hesitate to contact us. We look forwarding to cooperating with you.
