Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Paypal |
Type | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Impedance Voltage (%) | Total Weight (Kg) | Dimension (mm) | ||||
Length | Width | Height | Track Spacing | Track Spacing | ||||||
SC9-100/10 | 460 | 1490 | 2.0 | 4 | 700 | 940 | 650 | 1120 | 550 | 400 |
SC9-125/10 | 540 | 1750 | 1.8 | 4 | 810 | 960 | 650 | 1140 | 550 | 400 |
SC9-160/10 | 650 | 2020 | 1.8 | 4 | 950 | 980 | 650 | 1160 | 550 | 400 |
SC9-200/10 | 760 | 2400 | 1.8 | 4 | 1080 | 1100 | 650 | 1250 | 550 | 550 |
SC9-250/10 | 900 | 2810 | 1.8 | 4 | 1250 | 1120 | 760 | 1320 | 660 | 550 |
SC9-315/10 | 1080 | 3330 | 1.8 | 4 | 1370 | 1190 | 760 | 1410 | 660 | 550 |
SC9-400/10 | 1260 | 4020 | 1.3 | 4 | 1590 | 1240 | 760 | 1530 | 660 | 550 |
SC9-500/10 | 1490 | 5020 | 1.3 | 4 | 1870 | 1300 | 760 | 1610 | 660 | 660 |
SC9-630/10 | 1710 | 5910 | 1.3 | 6 | 2120 | 1330 | 920 | 1660 | 820 | 660 |
SC9-800/10 | 2120 | 6910 | 1.3 | 6 | 2330 | 1450 | 920 | 1680 | 820 | 660 |
SC9-1000/10 | 2480 | 8050 | 1.3 | 6 | 2930 | 1500 | 920 | 1770 | 820 | 660 |
SC9-1250/10 | 2980 | 9450 | 1.3 | 6 | 3530 | 1570 | 920 | 1850 | 820 | 820 |
SC9-1600/10 | 3420 | 11290 | 1.3 | 6 | 4160 | 1660 | 1170 | 1970 | 1070 | 820 |
SC9-2000/10 | 4150 | 13230 | 1.3 | 6 | 4800 | 1700 | 1170 | 2130 | 1070 | 820 |

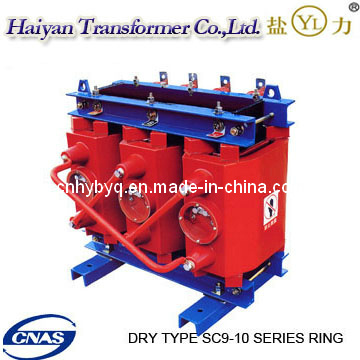

Prod Model: | SC9 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Delivery Term: | 20 Days(FOB) |
Port: | Shanghai |
Application: | Power |
Phase: | Three |
Coil: | Core-type Transformer |
Cooling Method: | Dry-type Transformer |
Winding Type: | Two-winding Transformer |
Brand: | Yl |
