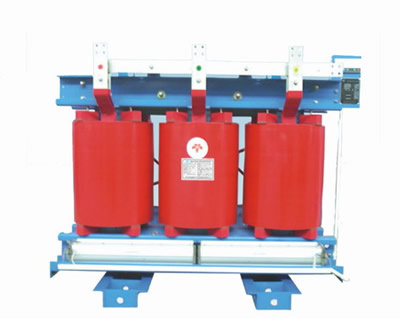

SCB10 Cast Resin Dry Type 10KV Power Transformer
Fertures
1, Low noise, low power loss, no pollution, eco-friendly Maintenance-free, smart appearance fire-proof, safety;
2, Highly moisture-proof;
3, Better dissipation of heat;
4, Core: The core is manufactured with high quality cold rolledgrain-oriented silicon steel of high magnetic conductivity. 45° Mitring and 5-steps overlapping structure is adopted for the core design, thus to greatly reduce no-load loss and no-load current.
5, HV winding: HV winding is manufactured with high quality copper wire, reinforced with glass fiber and being casted withepoxy resin at vacuum state with pressure, having the resin fully impregnated into the coils in the most professionalimported equipment. Therefore, product's partial discharge is especially low;
6, LV winding: LV winding (with the rated power equal to or higher than 400kVA) is manufactured with high quality foil conductor, resulting in excellent ampere-turn balance, low transverse magnetic flux leakage and higher anti-shortcircuit capability. By designing reasonable air conduit in the windings to increase the heat-dispersion surface, transformer's temperature rise is effectively controlled and the overload capacity is greatly improved.
7, Executed standards: GB/T10228-2008
Widely usage:
They are particularly suitable for power plant, highs-risebuilding, commercial center, theater, hospital, laboratory, museum, oil drilling platform, ship, port, station, airport, petrochemical plant, mass transit railway, tunnel, mine underground and other important place.
Cast Resin Dry Type Transformer Technical range:
1, Voltage Class: 6-35kV
2, Capacity Range: 30-3150kVA
3, Voltage Regulating Mode: No excitation regulator or OLTC
4, Tapping range: ± 5% Or ± 2*2.5% or (designed as requirement. )
5, Frequency: 5-HZ or 60HZ
6, Phase: 3
7, Connection symbol: Yyn0 Or D Yn11 (designed as requirement. )
8, Short-circuit Impedance (Following the technical parameters)
9, Usage Ambient: Relative Humidity 100%, Max Ambient temperature 40 ° C
10, Max Temperature Rise: 100k
11, Cooling Type: Self cooling (AN)
12, Protection class: IP00, IP20(Indoor), IP23(Outdoor)
13, Insulation: F Class
Note: It can supply voltage regulating range of ± 5% or ± 2× 2.5% of high-voltage of transformer
Rated
capacity
(KVA) |
Voltage group
(KV) |
Connection
method |
Loss |
Impedance
voltage(%) |
No-load
current
(%) |
Wt
(kg) |
No-load
(W) |
Load
(W) |
200 |
10(11,10.5,6.6,6.3,6)/0.4(0.23) |
D,yn11(or Y,yn0) |
620 |
2530 |
4.0 |
2.4 |
1103 |
250 |
720 |
2750 |
4.0 |
2.4 |
1197 |
315 |
880 |
3470 |
4.0 |
2.4 |
1439 |
400 |
980 |
3990 |
4.0 |
2.4 |
1617 |
500 |
1160 |
4880 |
4.0 |
2.2 |
1874 |
630 |
1340 |
5870 |
4.0 |
2.2 |
2436 |
800 |
1520 |
6950 |
4.0 |
2.2 |
2846 |
1000 |
177 |
8130 |
4.0 |
2.0 |
3360 |
1250 |
2090 |
6960 |
4.0 |
2.0 |
3938 |
1600 |
2450 |
11730 |
4.0 |
2.0 |
5565 |
2000 |
3320 |
14450 |
6.0 |
1.8 |
6300 |
2500 |
4000 |
17170 |
6.0 |
1.8 |
7455 |
