Product Specifications
| Prod Model: |
SCD-48 AC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
48*48 |
| Display: |
Indicator |
| Installation: |
Direct Connected |
| Kind: |
Rotating Coil |
| Power Source: |
AC and DC |
| Theory: |
Electronic Meter |
| Application: |
Electronic Equipment |
Product Description

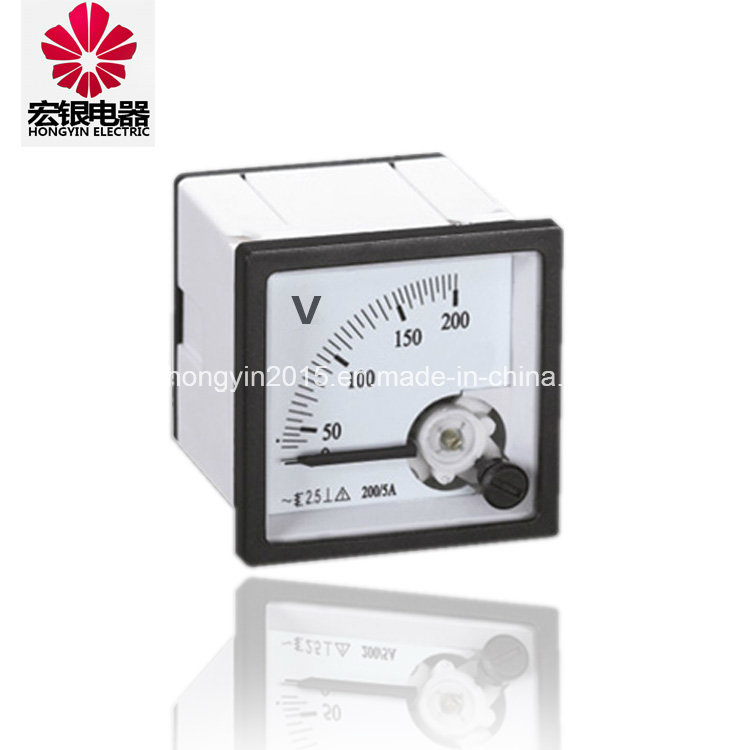

SCD-48 AC 48*48 high grade analog panel volt meters
1-Function:
1.1 The SCD48, SCD72, SCD96 series square instruments are with electromagnetic system and repellency structure. The instrument is constituted by measuring mechanism and indicating device. The casing is made of fire-retardant ABS engineering plastics, safe measuring terminals and efficient connection. And it use printing dial and transparent glass cover.
1.2 SCD72, SCD96 Series DC ammeter, voltmeter, frequency meter, active/reactive power meter, power factor meter are rectifier square meters. They are composed of the two parts magneto-electric mechanism. The casing is made of fire-retardant ABS engineering plastics, safe measuring terminals and efficient connection. And it use printing dial and transparent glass cover.
2-Specification:
Product name | specification | measuring range | accurancy |
| DC ammeter | SCD96-A | 50uA-20A (input directly) | 1.5 |
| SCD72-A | 20A-10kA*/60mV/75mV | 1.5 |
| SCD48-A | (EXTERNAL DEVICE ) | 2.5 |
| DC voltmeter | SCD96-V | 5V-750V (input directly) | 1.5 |
| SCD72-V | 450V-450kV*/1mA*/5mA (EXTERNAL DEVICE ) | 1.5 |
| SCD48-V |
| 2.5 |
| ACammeter | SCD96-A | 500mA-100A (input directly) | less than 30A 1.5 |
| SCD72-A | 5A-10kA*/5a (EXTERNAL DEVICE ) | 30A andmore 2.5 |
| SCD48-A | 500mA-30A (input directly) | 2.5 |
| AC voltmeter | SCD96-V | 15V-600V | 1.5 |
| SCD72-V | 380V-450kV*/100v | 1.5 |
| SCD48-V |
| 2.5 |
| Frequency meter | SCD96-Hz | 45-55hz,45-65hz,55-65hz | 1.0 |
| SCD72-Hz | rated voltage:100V,220V,380V | 1.0 |
| Active/reactive power meter | SCD72-W/var | 100V,220V,380-380kV/100V | 2.5 |
| SCD96-W/var | 5A,5A-10kA /5A(EXTERNAL DEVICE) | 2.5 |
| 3-phase power factor | SCD72-COS | 0.5C-1-1.5L |
|
| meter | SCD96-COS | 100V 5A,380V 5A |
3-FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How long are you company manufacture the products?
A: We are established in 2005 year.
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. HongYin people always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gotten through CE, RoHs standard
Yueqing Hongyin Electric Co., Ltd is a professional large-scale manufacturer of all types of Electronic Products, Integrates development and manufacturing in -house. The main products of our compnay are the meters, power supply, circuit breakers, industrial Plug and Socket, cable ties, surge protection device, hose power inverter and so on. Our company was established in 2000, and we have many years of history in the electronic products. Located In Yueqing, Wenzhou, near Ningbo, we enjoy convenient water, land and air transportation.
Yueqing Hongyin Electric Co., Ltd introduced advanced technology, imported advanced equipment and employs experienced technical and management personnel. Currently, our products have already exported to America, France, Australia, Italy and 20 other countries and regions.
Yueqing Hongyin Electric Co., Ltd has always focused on research, development and innovation, In 2010-2013 years. We attained CE, RoHS, UL certification.
Our company supplies different kinds of products. High quality and favorable price. We' re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
