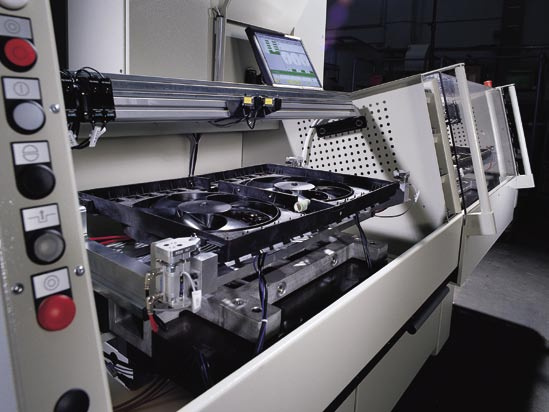

Balancing and Diagnostic System for Complete Passenger Vehicle Engine Cooling Fans
Work-piece mounting in original installation frame
Parameter identification
Signal analysis of the motor current
Semi or fully automatic test sequence
Flexible application, easy change over for various motor types
Product Specification
Range of application
Performance tests in the production of complete passenger vehicle engine cooling fans.
Measurements of dynamic and static unbalance in the fan plane for optimum unbalance correction.
Voltage, Electric Current, Direction, Speed Testing and Balancing of passenger vehicle engine cooling fans
Design
One or two-station machine with manual loading, automatic test sequence and manual unbalance correction
Machine frame with unbalance measurement and test equipment, protective housing with wide loading or maintenance doors, measurement and control cabinet with test computer and power unit for the test object.
Clamping of the fan to the casement or motor is possible, position of the motor either vertical or horizontal.
Measuring systems built into the control cabinet, essentially consisting of industrial PC with signal processor, TFT touch-screen and test software.
