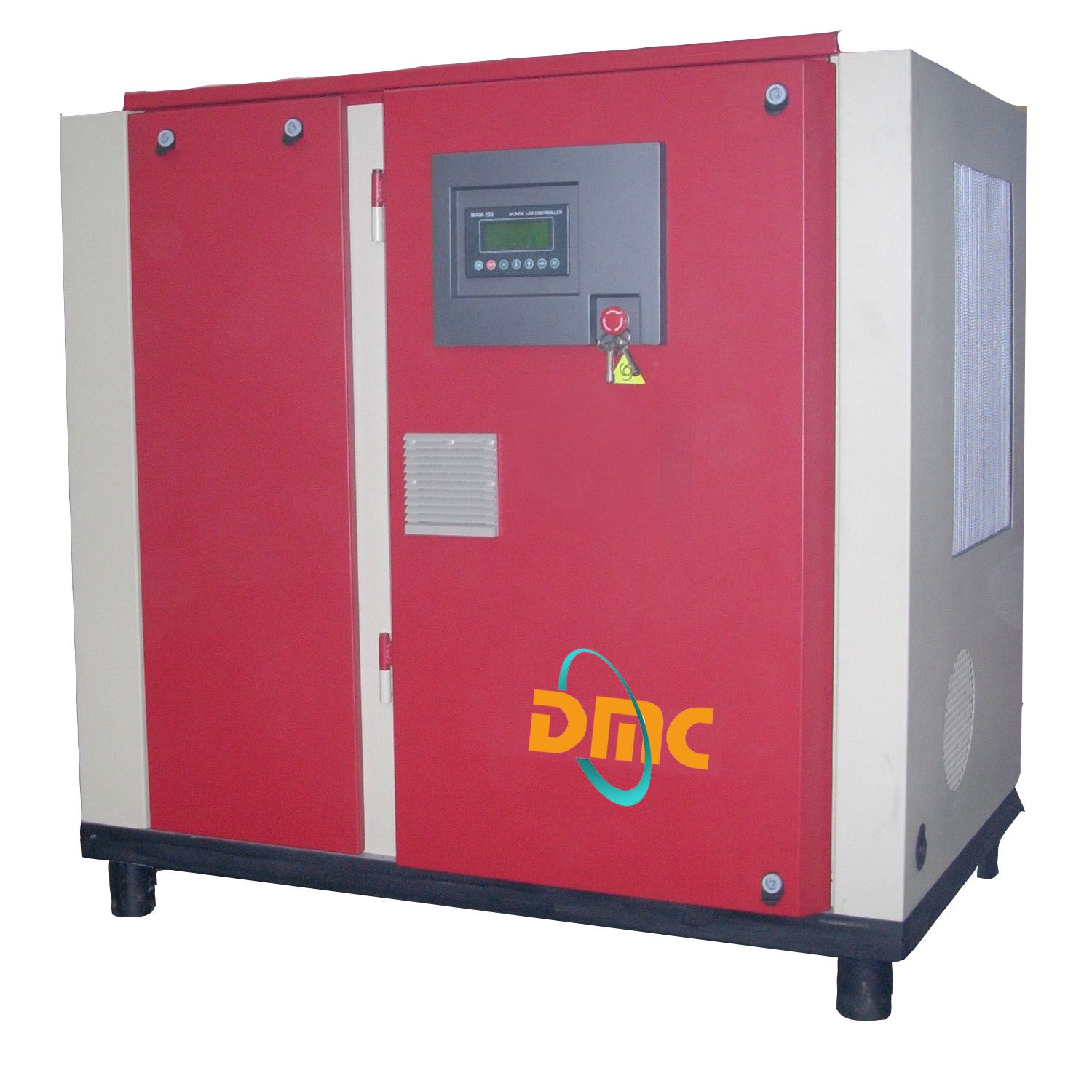

Screw Compressor with 50HP Direct Driven

Name: Screw Compressor with 50HP Direct Driven
Brand: china-manufacturer-directory.com
SKU: 665178555
Availability: InStock
Rating: 4.7 (132 reviews)

Price:	US $ 4700-4800/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Screw air compressor / CE
Type: SC-37AD
Specification:
-Model: SC37AD, oil injected screw compressor
-Free air delivery: 6.2 m3/min 219 cfm
-Rated operating pressure: 8 bar
-Main motor: 50 HP/ 37 kw, TEFC/IP54/1.15 S. F/2950 RPM
-Power supply: 380V50Hz, 415V50Hz, 230V60Hz, 460V60Hz
-Rotor speed: 2950 RPM
-Control type: Microprocessor
-Driven type: Direct driven by coupling
-Cooling type: Air cooling
-Residual oil content: Less than 3 ppm
-Oil volume: 30 liters
-Delivery air temp: Less than 8 above ambient temp
-Operating condition: Less than 45 of ambient temp
-Noise level: Less than 72 dB(A)
-Dimension: 1700mm*980mm*1650mm
-Weight: 690 kg
-Exhaust hole: 1 1/4 inch

Performance Features:
-high volumetric efficiency screw air end built by Germany and Italy, with new profile 5/6 lobe relation
-Air inlet filter and intake valve, automatic capacity control: Load/unload
-TEFC premium efficiency electric motor with UL, CE approval
-Microprocessor controller functions:
Display information on control panel: Exhaust pressure and temperature, running time, current of motor, state of load/unload, using time and replacing time for lubricant, air filter, oil filter and oil separator.
Fault information inquiry;
Power indicate light, phase protection light.
-Safety Devices for protection:
Automatic shutdown of high temperature, high pressure, low oil,
Phase protection, wrong rotation of motor shutdown warning.
Motor overload shutdown warning.
Emergency shut down button.
-low voltage starting, star/delta type
-Integrated oil separation system, with minimum pressure valve, thermostatic valve, safety valve
-Big air/oil after cooler can be used in high temperature environment
-Convenient belt tension adjustment system
-Full sound enclosure with dual filtration
-Synthesized lubricant, long life 4000 hours.

	Pressure		F.A.D		Motor
Model	Bar	Psi	L/min	CFM	Kw.
SC18	7	100	3,000	106	18.5
SC22	7	100	3,600	127	22
SC30	7	100	5,000	177	30
SC37	7	100	6,700	237	37
SC45	7	100	7,800	276	45
SC55	7	100	10,500	371	55
SC75	7	100	13,500	477	75
SC90	7	100	16,200	572	90
SC110	7	100	20,000	707	110
SC132	7	100	23,500	830	132
SC160	7	100	28,000	989	160
SC200	7	100	33,000	1,166	200
SC250	7	100	42,000	1,484	250

Prod Model:	SC 37AD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Screw
Performance:	Low Noise
Drive Mode:	Electric
Power Source:	AC Power
Configuration:	Stationary
Material:	Stainless Steel
Piston Type:	Closed
Lubrication Style:	Oil-less
Application:	Low Back Pressure Type
Mute:	Mute

DMC---A leading air & CNG compressor manufacturer for over 10 years

---ISO 9001 and CE certified

---Global competitive price and guaranty

---High quality integrated with Italy technology

---Customer over 20 countries in the world

DMC is a manufacturer in air compressor and CNG compressor industry. We have over 10 years experience in export business. Valued customers are at US Canada Mexico Argentine Peru Colombia Germany Italy Finland Poland Australia etc. Complete lines units with CE marked and ISO 9001.

European original screw airend and valve are be used to guarantee quality.

Our products line include:

--compact silent designed series PACK (5-20HP)

--3 in 1 compressor with dryer and air receiver series PACK-TA (5-20HP)

--stationary series SC (25-350HP)

--frequency variable speed drive series VSC (25-180HP)

--diesel portable series DSC (80-330HP)

--CNG gas compressor

Inherit excellence traditions of European compressor design, the core components of DMC compressor, such as screw air end and control valve, are all from European company. The air compressor products has quality performance of reliability, save energy, silent to meet customers more higher demand to compress air, reduce used cost and save money for customers instantly.

100% of our compressors are tested by using the latest inspection equipment and techniques, to assure the highest degree of product manufacturing quality and mechanical reliability.
