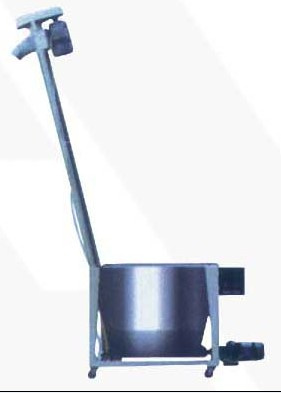

Application and Features:
This machine can be used wity all kind of extuders and high speed mixer, it can carry plastics powder by screws into the hopper of Molding Machine by means of a controller of material level(Height can be settled by customers themselves), it can save your labour, Safety and reliability.
Model specification | Unit | ZD-600 | ZD-1000 | ZD-2000 | ZD-3000 |
shangliao electrical machinery power | kw | 1.1 | 1.5 | 1.5 | 2.2 |
Pushes the material electrical machinery power | kw | 0.55 | 0.75 | 0.75 | 0.75 |
Feed tube diameter | mm | 76 | 102 | 120 | 140 |
Feeding altitude | m | 3-5 | 3-5 | 3-5 | 3 |
On estimated | kg/h | 600 | 1000 | 2000 | 3000 |
Feed box capacity | kg | 80 | 150 | 200 | 250 |
Feed box size (L×W×H) | cm | 65 × 65 × 80 | 100 × 75 × 80 | 120 × 80 × 80 | 160 × 80 × 80 |
Machine weight | kg | 80 | 150 | 200 | 300 |
ZHANGJIAGANG XINDONG MACHINERY Co., Ltd is a high-tech entrreprise that specialized in researching, developing and manufacturing plastic extrusion equipments, various of pipes productiong line. It bears complete and advanced systems in developing, manufacturing and testing etc.
XINDONG MACHINERY COMPANY always insists on its business polity: " quality is life, science and technology is leading force, and customers' satisfaction is ultimate target", making effort to promote the technology and build up the world's first class brand name. The high quality single screw extrusion technology, newly parallel twin-screw extrusion technology; PVC PP-R PE(large diameter) pipe extrusion technology; HDPE winding forming technology; PVC PE double-wall corrugated pipe technology; PVC plastic sheet extrusion technology; PVC mixing system etc are all widely welcomed and accepted by domestic and overseas customer.
We consider " Exloring the highest technology in machinery industory; Creating a brilliant future in this field" as our company police. And we deeply believe that the tomorrow of XINDONG machinery will be much more brilliant.
