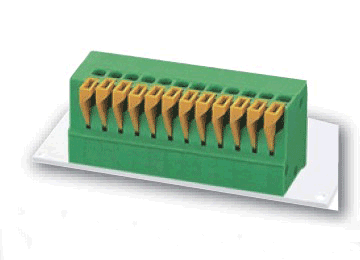

Screwless Terminal Block of 2.54mm Pitch, Terminal blocks, Spring Terminal Blocks, PCB Terminal Blocks, Terminal block Connector
Part number: LS141V-2.54
Center Spacing: 2.54mm
Number of Poles: 2-24p
Approvals: UL, CE Certified, RoHS Comply
SPECIFICATIONS:
| IEC | 130 V / 13.5 A |
| UL | 300 V / 2 A / AWG 24-20 |
| Wire Size | 24-20 AWG |
| Cross-Section Area | 1 mm² |
| Stripping Length | 11 mm |
| Wire Entry | Top |
| Housing Material | Polyamide, 94VO |
| Contact Material | Brass Tin Plated |
| Recommended PCB Hole Diameters | 051" (1.30)
|
| Operating Temperature | 105° C (221° F) max., -40° C(-40° F) min |
Shanghai Elinker Electic Co., Ltd. is a specialized manufacturer of custom and standard Terminal Blocks, Founded in 2000, Elinker offers nearly 15 years of proven performance in producing superior quality products.
Quality is the founding principal of Elinker' Manufacturing philosophy. Elinker is certified ISO 9001: 2008, Most of the Terminal Blocks in Elinker are UL, CE and RoHS approved. All our products are 100% quality guaranteed.
Elinker incorporates the most advanced design and manufacturing technologies. All Elinker' S products have been designed and prototyped for sales using the most advanced testing techniques and methods.
In nearly 15 years, Elinker has invested the most modern manufacturing technology and equipments, and as a result, we have consistently provided large OEMs with the most cost effective alternatives globally.
Customer Satisfaction, Design Engineering, Quality, and On-Time Delivery are four key areas we are focusing on to insure high quality terminal blocks and total customer satisfaction. Our partner companies rely upon us to create superior quality, budget conscious solutions for complex challenges. At Elinker, we view solutions as the key to our continued growth and success...
