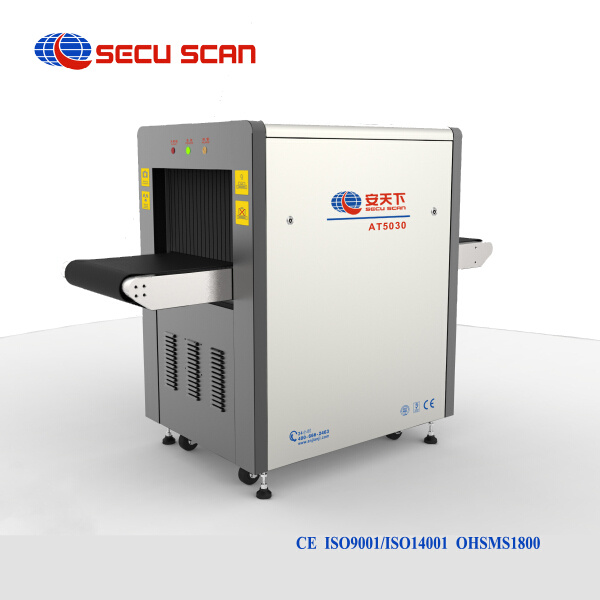

SECU SCAN X Ray Screening Device for Airport, Embassy, Hotel
Model: AT-5030A------ Popular economic Version
The AT-5030A easily accommodates the inspection of hand baggage and parcels.
-----------------------------------------------------------------------------------------------------------------------------------------------
General Specification of x-ray baggage detector:
1 Tunnel Size: 500(W)*300(H)mm
2 Conveyor Speed: 0.22m/s
3 Conveyor Max Load: 150kg
4 Dose per Inspection: <2.9 μ Gy/h
5 Resolution: <0.101mm Metal Wire
6 Penetration: 8mm Steel
7 Film Safety: Guarantee ISO1600 Film
8 X-ray Leakage: <0.2 μ Gy/h (at a distance of 5cm From external housing)
-----------------------------------------------------------------------------------------------------------------------------------------------
X-ray Generator of parcel scanners:
9 Generate direct: Upward
10 Generate angle: 60 degree
11 Anode Voltage: 80Kv
12 Anode power: 0.4 to 0.5mA
13 Cooling / Duty Cycle: Oil Cooling /100%
-----------------------------------------------------------------------------------------------------------------------------------------------
Image System of x-ray security detector:
14 X-ray Sensor: L-Shaped Photodiode Array (monoenergetic), 12bit Deep
15 Monitor: High Resolution Color, LCD Accord, 17 inch
16 Image Processing: Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
17 Image Grey Level: 4096
18 Image Max Resolution: 1024 * 1280 pixel
19 Image Processing: 24bit for processing real time
20 Image storage: Storage 60000 pictures in real time
21.Zoom: 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
-----------------------------------------------------------------------------------------------------------------------------------------------
Installation Data of x-ray scanner machine:
21 Operation temperature/Humidity: 0-45º C/20%-95%(non-condensing)
22 Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
Operation Power: 220VAC(± 10%)50± 3Hz
23 Power Consumption: 1.0 KW (max), 0.3KW(working)
24 Noise: <65dB
-----------------------------------------------------------------------------------------------------------------------------------------------
Welcome to join SECUSCAN, completed solution of security inspecting protection. Thank you for your Inquirey.
| Description | Model No. | Tunnel size(L*W) |
| X-ray baggage scanner detector | AT5030 | 500mm*300mm |
| X-ray baggage scanner detector | AT6550 | 650mm*500mm |
| X-ray baggage scanner detector | AT8065 | 800mm*650mm |
| X-ray baggage scanner detector | AT10080 | 1000mm*800mm |
| X-ray baggage scanner detector | AT100100 | 1000mm*1000mm |
For more info, pls check our website: www.anjianji.com
www.xraybaggagescanner.com
Shenzhen Security Electronic Equipment Co., Ltd (SEE), is a high-tech company integrating R&D, manufacturing, engineering, training and services.
SEE gradually establishes a very comprehensive product range covering X-ray machines with different tunnel size X-ray machines, Walk through Metal Detector, Hand-held Metal Detector, Liquid Scanner, Explosive auto detection system, under vehicle system and etc. SEE security systems have been used in different countries and regions in airports, seaports, customs, railway stations, long-distance bus stations, jail houses, courts yard, and many other security-related applications.
With ISO9001 management system, SEE always keeps running with high efficiency by balancing development on her product R&D, manufacturing, quality control and service according to ISO strict international standard requirements.
With global marketing strategy, SEE provides innovative and dependable security solutions to our global customers and makes every effort to continually exceed our customers' Expectations. SEE registered its own trade mark SECUSCAN, which are well known in national market.
SEE is great help for public security solution.
