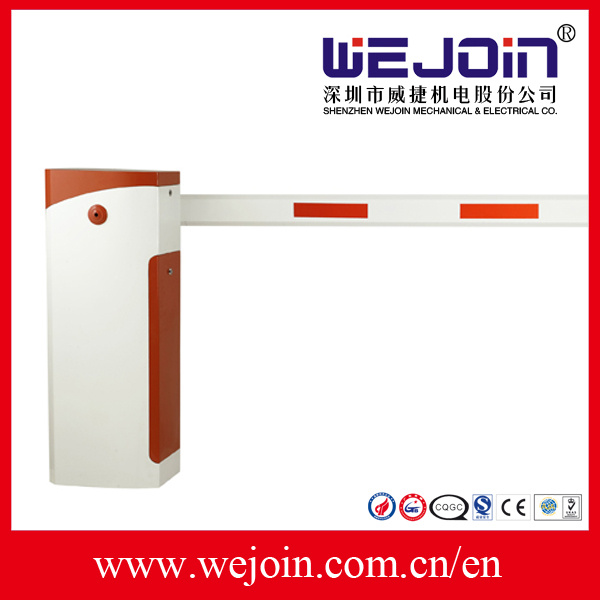

Product Specifications
| Prod Model: |
WJDZ201 |
| Delivery Time: |
1-15days Depend on Quantity |
| Motor Material: |
Aluminum Alloy |
| Operating Time: |
1s, 3s, 6s |
| Boom Length: |
3m, 4.5m, 6m |
Product Description
Multiplex and diversified designs, meet your individual need
Unique appearance, nice color accomplish the modernizing housing
1. Manual release to adjust the machine when power off
2. Machine core with compression spring, effectively avoids the accidents caused by spring broken.
3. Die-casting aluminum alloy motor, precision and good at thermal radiating.
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the infrared photocell for anti-bumping(optional)
9. Support for the external and internal vehicle loop detector
10. Traffic light interface
11. Wire control(switch signal)/remote control(418Hz)
12. RS485 communicational module to realize the intelligent management for the passing
13. Bi-direction passing, can be install both on left and right side
Working environment and data
13. Mechanism temperature -25degree centigrade+85 degree dentigrade
14. Control board temperature -20 degree centigrade+85 degree centigrade
15. Power supply 220V± 10% 50/60 Hz
110V± 10% 50/60 Hz
16. Rated power 120W
17. Relative humidity ≤ 90%
18. Remote control ≥ 30M
29. Net weigh 60 Kg
4
Model
Item |
201-11 |
201-13 |
201-16 |
/ |
/ |
/ |
/ |
201-46 |
820-56 |
|
/ |
203-13 |
203-16 |
/ |
/ |
/ |
/ |
/ |
/ |
|
/ |
301-13 |
301-16 |
301-23 |
301-26 |
301-33 |
301-36 |
/ |
/ |
|
501-11 |
501-13 |
501-16 |
501-23 |
501-26 |
501-33 |
501-36 |
501-46 |
501-56 |
|
Running time |
1sec |
3sec |
6sec |
3sec |
6sec |
3sec |
6sec |
6sec |
6sec |
|
Boom type |
straight |
90 degree folding |
180degree folding |
2fencing |
3fencing |
|
Max boon length |
3M |
4.5M |
6M |
3M |
5M |
3M |
5M |
4.5M |
4M |
|
Boom dimension |
25*80mm |
45*100mm |
|
Boom weight |
3kg |
4.5 kg |
6 kg |
6.5 kg |
8 kg |
9 kg |
11 kg |
7 kg |
7.5 kg |
|
Voltage |
AC220V±10%, AC110± 10% |
|
Frequency |
50/60HZ |
|
Motor voltage |
220V |
|
Power working temperature |
80W |
|
working temperature |
-35 degree~+75 degree |
|
Protection degree |
IP4 |
