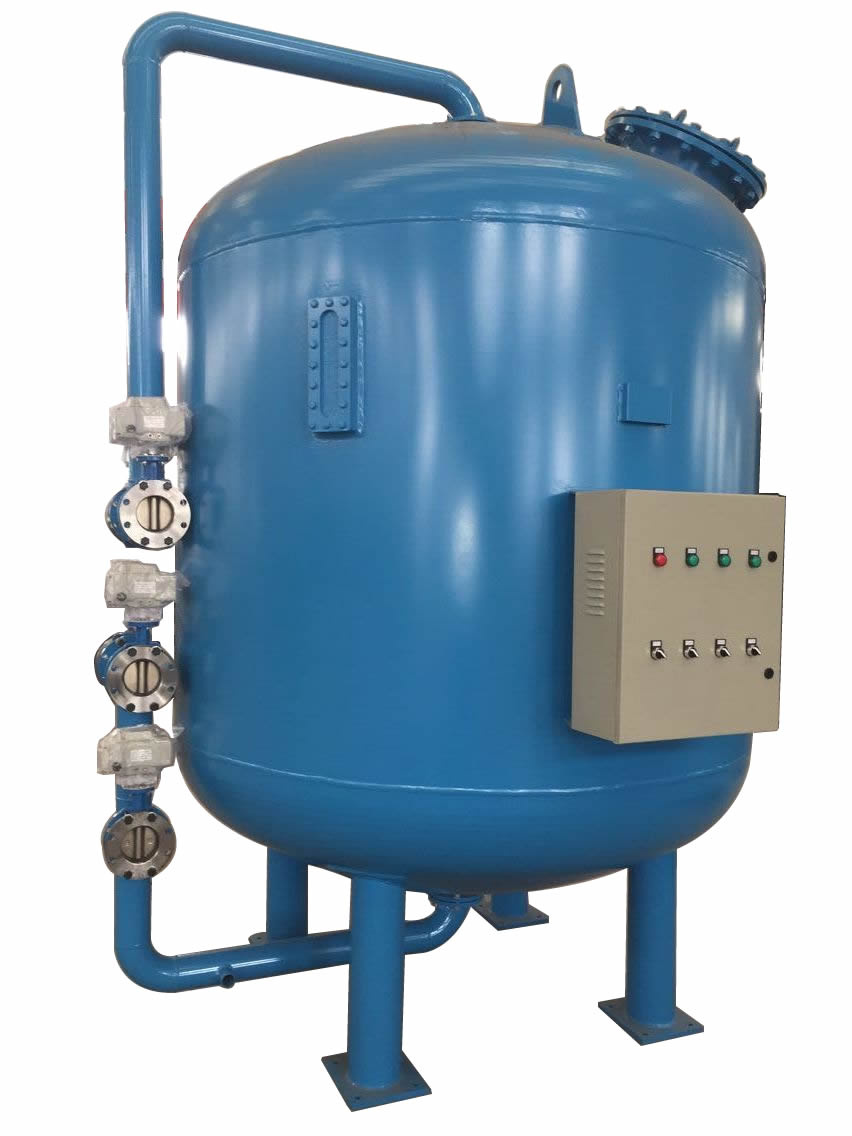

Sediment Multi Grade Filter for Pretreatment Reverse Osmosis Plant

Sediment Multi Grade Filter For Pretreatment Reverse Osmosis Plant

Multi GradeFilter is used for removal of suspended solids &turbidity from Water & Wastewater. We, at Shubham offer Series of filters at a low cost, reliable and highly efficientway to filter your water.
Our unique design of Multi Grade Sandfilter ensures the maximum utilization of the surface area, lesser pressure drop across the filter bed and effective removal of the impurities even under the conditions of high filtration rate compare to pressure sand filter & dual media filter.
 Shubham MGFs are available in diameters from 0.5 Mts. to 3.2 Mts.(vertically) and in length from 3.0 Mts. mm to 11 Mts. (Horizontally) with flow ratesup to 450M3/Hr. these rugged, pre-engineered, pre-assembled units minimizeinstallation and start-up costs. Whether you require ROfeed process water or filtered water, Shubham can full fill applications requirement
Working Principle:
 Raw water is passed through the Multi grade media filter,contains anthracite at a top layer of media followed by fine & Coarse Garnet and quartz sandsupported by pebbles and gravels. Multi grades of media and layers provide extra ordinary dirt holding capacity at various level of total media depth and produce unparalleled filter water quality.During the filtration cycle the largest particles are strained out by the anthracite, coarse and fine sand, Coarse & fine garnet though a combination of adhesion and straining.  Since the particles in the water are filtered out at various depths in a multimedia filter, the filter does not clog as quickly as if all of the particles were all caught by the top layer.

Benefits:
Efficient Turbidity and TSS Removal
High filtration rate
Filtration efficiency is up to 2.0 ppm suspended particles
Easy operation & maintenance
Wide range in material of construction
Economical way of production & design
Low Energy requirement
Can accommodate seasonal fluctuations in flow rate
Long filter cycles between backwashing with minimum loss of pressure.

APPLICATIONS

Drinking Water Treatment
Turbidity & Total Suspended Solid Removal
Iron Removal
Manganese removal
Fluoride Removal
Arsenic Removal
Pretreatment to reverse Osmosis Plant
Pretreatment to Desalination Plant

River Water Treatment
Turbidity & Total Suspended Solid Removal

Ground Water Treatment
Turbidity & Total Suspended Solid Removal
Iron Removal
Manganese removal
Fluoride Removal
Arsenic Removal

Waste Water Treatment Plant
    Turbidity & Total Suspended Solid Removal      Septic Tank expansion
Swimming Pool Filtration
    Turbidity & Total Suspended Solid Removal
Cooling Tower & Process Water Treatment
    Turbidity & Total Suspended Solid Removal      Side Stream Filter    Full Stream Filter    Make up water Filter

AAA:

01.  how small a solid needs to be removed,
02.  how dirty the water is,
03.  how the water will be used once it is filtered,
04.  and the source of backwash water needed to clean the filters.

Technical parameters sheet for Mechanical actived carbon filter


TPYE	TANK SIZE (mm)	TOTAL HIGH (mm)	FLOW RATE (m3/hr)	INLET AND OUTLET (mm)	QUARTZ SAND  (t)
YLD-MF-500	500*1500	2350	2	DN32	0.39
YLD-MF- 600	600*1500	2380	2-3	DN32	0.56
YLD-MF- 700	700*1500	2400	4	DN40	0.76
YLD-MF- 800	800*1500	2400	5	DN40	1
YLD-MF- 900	900*1500	2500	6	DN50	1.3
YLD-MF- 1000	1000*1500	2600	8	DN50	1.6
YLD-MF- 1200	1200*1500	2700	11	DN65	2.3
YLD-MF- 1400	1400*1500	2800	15	DN65	3
YLD-MF- 1500	1500*1500	2850	18	DN65	3.5
YLD-MF- 1600	1600*1500	2900	20	DN80	4
YLD-MF- 1800	1800*1500 1800*1800	3000	25	DN80	5
YLD-MF- 2000	2000*1500	3100	30	DN100	6
YLD-MF- 2200	2200*1500	3180	38	DN100	7.5
YLD-MF- 2400	2400*1500	3330	45	DN100	9
YLD-MF- 2500	2500*1500	3380	50	DN100	9.7
YLD-MF- 2600	2600*1500	3430	55	DN125	10
YLD-MF- 2800	2800*1500	3530	60	DN125	12.5
YLD-MF- 3000	3000*1500	3630	70-80	DN125	14
YLD-MF- 3200	3200*1500	3730	80~100	DN150	16
