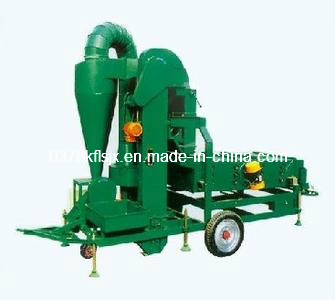

5XZC-25 Bean Processing Machine/Seed cleaning and Grading machine
Feature of 5XZC-25 Seed Cleaning and Grading Machine
The Machine equipped with Cyclone dust separator is professionally used for cleaning and grading grains / seeds
Application:
It is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.
Working principle
Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.
The sieves has Rubber Balls inside for the self-cleaning.
|
Model No. |
Capacity(T/H) |
Power(KW) |
Weight(T) |
Sieve Size |
Dimensions(MM) |
Remarks |
|
5XZC-5DH bean processing machine |
5 |
7.74 |
1.6 |
2000×1000 |
4970×1900×3100 |
With cyclone dust separator |
|
5XZC-7.5D bean processing machine |
7.5 |
10.1 |
1.7 |
2400×1250 |
5150×2160×3500 |
|
5XZC-15 bean processing machine |
10 |
10.5 |
1.8 |
2400×1500 |
5400×2350×3500 |
|
5XZC-25 bean processing machine |
20 |
20.95 |
2.9 |
2400×1800 |
5820×2650×3600 |
Double Air Cleaning System |
