Product Specifications
| Prod Model: |
ZTJ-330 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Web High Speed offset Press |
| Printing Color: |
Six-color Machine |
| Printing Paper Size: |
320*320mm |
| Printing Speed: |
50-180rpm |
| Motor Power (',KM/HP): |
60kw |
Product Description

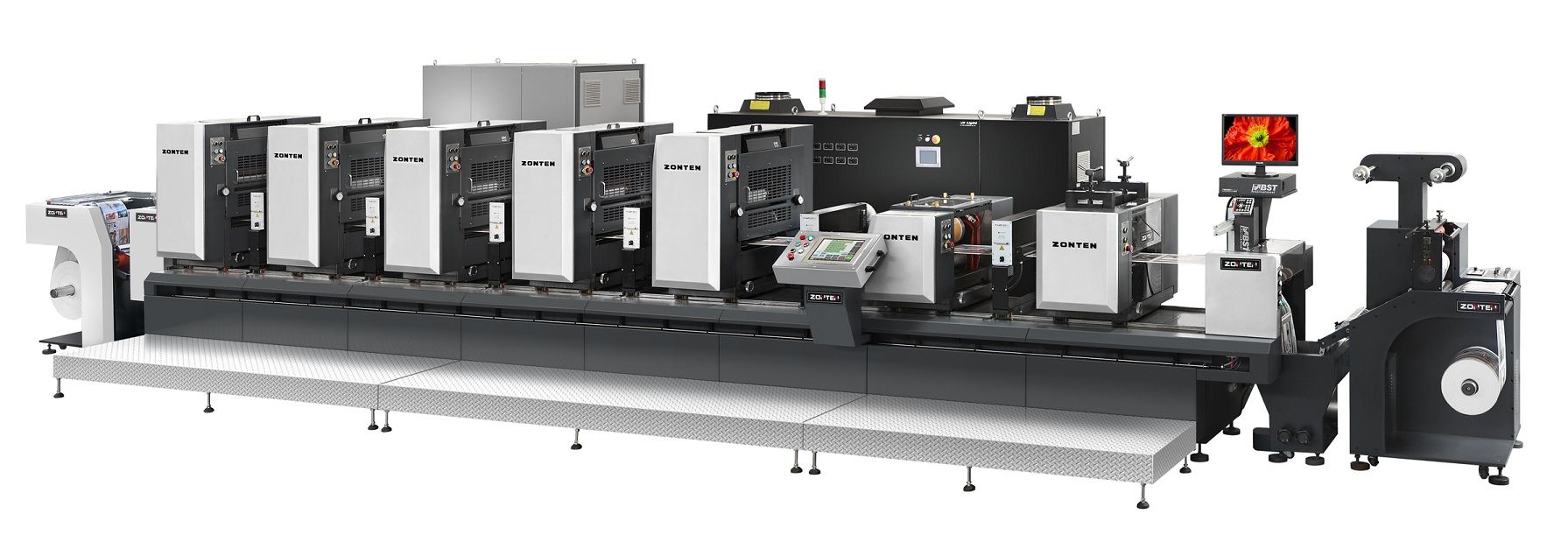

ZTJ-330 High speed Automatic Multi color Printing Machine
Performance And Characteristics:1. Servo driven: Independent servo driven system in each unit to guarantee stable register at high printing speed.
2. Printing unit: Use the most advanced inking system which has 23 inking rolls, four large diameter form rolls included and alcohol damping system to guarantee printing quarlity.
3. Pre-register system: Based upon the printing length, log data into the sliding control station, each unit will automatically be adjusted to its ready position.
4. Register system: Each printing unit can remote adjust register which includes lineal, lateral and skewing without stopping the press to save time and reduce the waste of substrate.
5. Vacuum backflow control unwind: Vac cum back flow cylinder should be able to prevent scratches on the back of P/S label during intermittent motion.
6. Joystickless: Fully automatic operation system including pressure adjustment, inking roll washup, roller impression, etc.
7. Easy to operate: Equipped with sliding touch screen control station which can be moving around to increase the efficiency of operator.
8. Printing size: Paterted technology to minimize printing size to achieve larger scale of variable size printing.
9. Control system: Apply electronic component from famous international brand to guarantee long term reliable operation.
10. Lubrication system: Centralized automatic lubrication.
Optionals:Automatic ink rolller washup system
Remote inking system
Cold foil stamping device
Silk screen printing unit
BST camera
Digital Printing unit

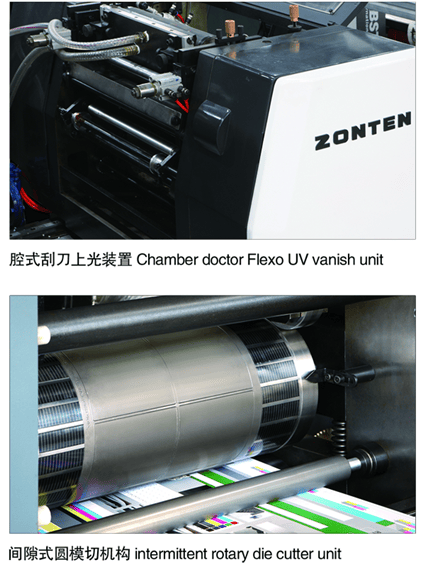

UV flexo printing station
Rotary die cutting device
Laminating device
Web guide system
Technical specifications:| Max. web width | 330mm |
| Max. printing width | 320mm |
| Printing repeat | 100~320mm |
| Thickness of substrate | 0.1~0.3mm |
| Machine speed | 30-200rpm(50M/min) |
| Max. unwind diameter | 700mm |
| Max. rewind diameter | 700mm |
| Pneumatic requirement | 7kg/cm2 |
| Total capacity | 30kw/6 colors without UV 30kw/6 colors (Not including UV) |
| UV capacity | 4.8/kw/colors 4.8kw/color |
| Power | Three-phase 380v three phase 380V |
| Overall dimension(L×W×H) | 9500×1700×1600mm |
| Machine weight | about 9/t/6 colors about 9 ton/6 colors |
Notes: With the viriation of the length to be printed, machine speed should be changed.
*Its overall dimension and manufacturing Process are subject to change without further notice. |
Zonten enterprise specializing in manufacturing trademark printing machines series, has been one of the key leading enterprises in printing machine sector in China, depending on its own strong market net, research strength to develp continuosly and independently. Now it is a member unit of the China Printing Technology Association.
The company has abundant technical power, and absorbs the distillate from simiar products inland and overseas to innovate and trial-manufacture the newest fully autonatic overprint intermittent high-speed seff-adhesive brand printing press successfully. While by our resarch and development, we have the series, including the Automatic FlexoGraphic Printing Machine, fully-automatic inclined-back brand pringting press, continuous roller mold-cutting machine, high-speed slitting machine, roller-to-roller screen printing press and so on,
The company has already passed the authentication of ISO9001: 2000 qualiy management system, Passed European CE Security Certificate, multinomial invention patent, appearance and practicability patent.
For many years, Zonten holds the managing idea of "Client first Quality Basic, Quality important, Developing and keep Forging Ahead"to make the products well sold all over the chia, and export to countries snd regions in Southeast Asia, Middle East, South America, Europe.
Confronted the fierce market competition. Target ofenterprise is to create the top enterprise, excellent Quality and perfect service and try to try to be the best. The compny uphold the people-oriental poild an enterprise spirt" high efficieny, value the talents, being credit and trustworthiness" The people Zonten work hard for the development and properity of Chinese Non-adhesive trademark printing industry.
