Product Specifications
| Prod Model: |
ZDH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
0.5~40 T/H |
| Price: |
Factory Direct Sales |
| After-Sale Services: |
Available |
| Working Condition: |
Excellent |
| Instruction: |
Under Our Engineer's Guidance |
| Service: |
for The Whole Using Life |
| Design: |
Offered by Us |
| Motor Power: |
3-75 Kw |
| Operational Method: |
Continuous |
| Structure: |
Rotary Type Drier |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Combined |
| Heating Mode: |
Convective |
Product Description

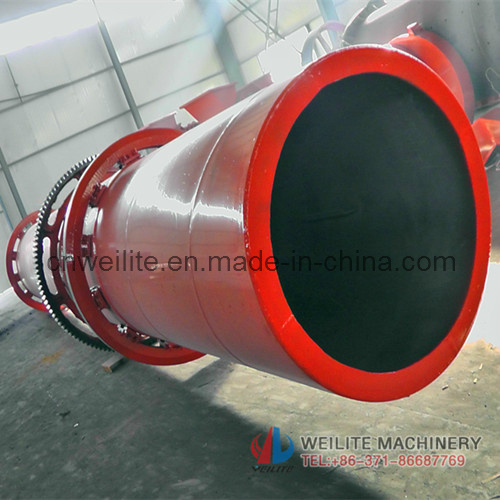

Sell High Efficiency Low Consumption Rotary Fluorite Powder Drying Machine
1. Applications of rotary fluorite powder drying machinery:
Rotary fluorite powder drying machinery is suitable for a wide variety of products, ranging from granular, powdered and crystalline materials, through to filter cakes and sludges for the food, chemical and mineral industries.
Rotary drying machinery makes the pellets through extrusion and polished new technology, completely solve the traditional pelletizing process which the organic powder low increased quantity, difficulty extrusion and the materials need to be dried and crushed and other technique problems.
2. Working Principle of the rotary drying machinery:
The auto-combustion device provides heat resource for our rotary drier, which adopts down-flow heating method. When the mineral materials are fed into the cylinder, it flows down as a result of gravity. Meanwhile, they are repetitively scattered in the air so that they are in full contact with the hot air. The material is thus dried gradually.
3. Characterstics of rotary drying machinery:
1). The machine's design is reasonable, have reliable performance, high efficiency, dry and heat uniform, maintenance is convenient.
2). Equipment adopts self-aligning type tug structure, the tug and with good tire-roller, greatly reduces the wear and tear of power consumption.
3). Resistance to overload ability, cylinder smooth operation and high reliability.
4). Drying machine has the characteristics of high temperature resistant, high temperature hot air can be used for a rapid drying of material.
5). Rotary dryer processing capacity, fuel consumption, dry low cost less.
4. Service Commitment:
The product has a warranty period of one year since the date of sale, during which, our company will repair the fault caused by product quality for free, while, faults caused by incorrect operation, improper maintenance, as well as fire wear and tear are beyond the scope of warranty.
Users need to submit product information to our after-sale service department within the fixed time after purchasing our products, for us to establish customer archives. We have recorded all our products that have been sold, so users need to properly record the products brand and number indicated in certifications, for us to do the follow-up service.
We provide a life-long pay-needed maintenance service for all products sold by our company.
Ours factory also produce many kinds of drying equipments for various materals, welcome consulting.
|
Model (mm) |
Gradient (%) |
Rotational ( r/min ) |
Inlet air temperature ( ºC) |
Power (kw) |
Production capacity (t/h) |
|
φ 600 × 6000 |
3-5 |
3-8 |
≤ 700 |
3 |
0.5-1.5 |
|
φ 800 × 8000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.0 |
|
φ 800 × 10000 |
3-5 |
3-8 |
≤ 700 |
4 |
0.8-2.5 |
|
φ 1000 × 10000 |
3-5 |
3-8 |
≤ 700 |
5.5 |
1.0-3.5 |
|
φ 1200 × 10000 |
3-5 |
3-8 |
≤ 700 |
7.5 |
1.8-5 |
|
φ 1200 × 12000 |
3-5 |
3-8 |
≤ 700 |
11 |
2-6 |
|
φ 1500 × 12000 |
3-5 |
2-6 |
≤ 800 |
15 |
3.5-9 |
|
φ 1800 × 12000 |
3-5 |
2-6 |
≤ 800 |
18 |
5-12 |
|
φ 2200 × 12000 |
3-5 |
1.5-6 |
≤ 800 |
18.5 |
6-15 |
|
φ 2200 × 18000 |
3-5 |
1.5-6 |
≤ 800 |
22 |
10-18 |
|
φ 2200 × 20000 |
3-5 |
1.5-6 |
≤ 800 |
30 |
12-20 |
|
φ 2400 × 20000 |
3-5 |
1.5-5 |
≤ 800 |
37 |
18-30 |
|
φ 3000 × 20000 |
3-5 |
1.5-5 |
≤ 800 |
55 |
25-35 |
|
φ 3000 × 25000 |
3-5 |
1.5-5 |
≤ 800 |
75 |
32-40 |
Zhengzhou Weilite Machinery Equipment Co., Ltd. is an import and export oriented enterprise. Our company produces large and medium-sized mining machinery, metallurgical equipment, building materials, cold pressure ball machines, Vibrating Feeders and Briquette & Ore Powder Ball Press Machines, etc.
The technological performance of our grinding mills and crushers are on the lead level. We have achieved the internationally advanced level. In recent years, we have optimized design and adopted advanced technology. We have been equipped with the following equipment:
Grinder mills: Raymond mills, high-pressure suspension grinders, high-pressure micro powder mills, etc.
Crushers: Jaw crushers, impact crushers, Vertical composite crushers and Counter-attack highly effective fine crushers (sand making machines)
Meanwhile, we also offer vibrating feeders, vibrating screens, transporters, flotation machines, magnetic separators and sand washing machines.
Our company is located at Zhujiang Road, Xushui Industrial Park, Zhengzhou City, covering an area of 50, 000 square meters. Our company has more than 100 heavy-duty processing equipment and mining equipment. Our fixed assets are more than 5000 million yuan. Our company consists of two branches and two institutes.
Since the inception, with advanced modern enterprise management systems, precise production and independent innovation, we bring together a group of scientific and technological elites. Our company currently employs more than 500 people, including more than 20 engineers, 150 middle level technicians. We have introduced the advanced technology.
Product quality is an enterprise's life. We have passed ISO9001: 2000 international quality system management certification. Our company has an experienced and skilled after-sales service team.
You are warmly welcome to contact us for more information.
