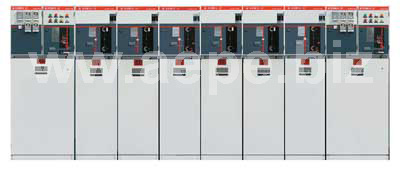

XGN15-12/24 SF6 ring main unit switchgear cubicle with SF6 load switch as the main switch and air insulation for whole cabinet is electric distribution automatization and compact also expandable metal clad switchgear, it character in it's simple strucuture, flexible operation, reliable interlocking and convenient installation etc., which can provide the satisfactory technical projects both for different application occasions and users.
With the adoption of sensor technology and the protection relay up to date, plus the advanced technology and flexible assembly project, XGN15-12 unit type SF6 ring main unit can completely meet the requirement of continuously variable market. It can take self-produced FLN36-12/24D load break switch or ABB SFG type SF6 load break switch; Also according to user's demand can be assembled with the Ukraine BP series Vacuum circuit breaker with permanent magnetic mechanism. Operational methods for the main switch inside ring main unit can be either manual or electric power driven. And it can meet the requirement of "Four Controls" when matched with FTU, RTU.
This product conforms to the standards of IEC62271-100 and GB3804, 3906.11022, IEC298, 265, 129, 694, 420, 56, 529, 932
|
No. |
Item |
Unit |
Parameters |
|
1 |
Rated voltage |
kV |
12 |
24 |
|
2 |
Rated current |
A |
630 / 1250 * |
|
3 |
Rated frequency |
Hz |
50 / 60 |
|
4 |
1min Power frequency withstand voltage |
Common value |
kV |
42 |
50 |
|
Across insulate distance |
kV |
48 |
60 |
|
5 |
Lightning impulse withstand voltage |
Common value |
kV |
75 |
125 |
|
Across insulate distance |
kV |
85 |
145 |
|
6 |
Rated short time withstand current |
Main loop |
kA |
25 / 2s |
20/2s |
|
Earth loop |
kA |
20 / 2s |
16/2s |
|
7 |
Rated withstand current ( peak) |
kA |
63 |
50 |
|
8 |
Rated transfer current |
A |
1700 |
1000 |
|
9 |
Rated active load and close circuit breaking current |
A |
630 |
|
10 |
Rated cable charge breaking current |
A |
50 and 10 |
|
11 |
Unloaded transformer breaking current |
A |
20 |
20 |
|
12 |
Cable charge breaking current in earthing malfunction |
A |
100 |
80 |
|
13 |
Rated short circuit breaking current |
kA |
20** |
|
Asia Electrical Power Equipment (Shenzhen) Co., Ltd. AEPE is a wholly-owned subsidiary in China by Asia Electrical Power International Group Inc - is a Nevada-headquartered American corporation, AEPE is a high-tech manufacturing company for power distribution switchgears, company established in 1994 currently experiencing solid revenues based on consistently increasing sales, through broader market penetration in the exploding electrical power industry sector centered in China.
The company combines manufacturing and trading with exporting and importing, electrical equipment/switchgear research & development. Since its inception AEPE has earned a distinguished position on the recommendation list of the State Economy and Trade Commission for national power distribution network construction in the People's Republic of China.
AEPE is an enterprise specializing in the manufacturing and marketing of complete high, medium and low voltage power distribution equipments/switchgears focused on the secondary power distribution industry (12-24-33KV). That industry has been experiencing substantial expansion in China because of the country's recent phenomenal economic vitality, allied to which the demand for electrical energy is extremely high and growing significantly. The company's principal products include cabinet-type substations, outdoor switching stations, cable branch stations and switching elements such as load break switches and circuit breakers.
During its early years AEPE cooperated with such world renowned high and medium voltage switchgear manufacturers as ABB of Switzerland and Schneider of France, both of whose products the company distributed in China.
In 1996, AEPE succeeded in developing the first medium voltage XGN15-12 (I) SF6 ring main unit switchgear in China, the core part of which is the ABB SF6 load break switch that optionally can be replaced by circuit breakers and insulating switches. Subsequently, AEPE completed R&D for the first medium voltage SF6 load break switch, FL(R)N-12D, and the first vacuum circuit breaker in China, the VDM6. Both of these products fully meet GB/IEC standards.
By combining high level technology with advanced equipment, diligent management, effective sales administration, quality controls and after-sales service, over the past decade AEPE has implemented an ISO9001-certified quality control system and attained industry recognition by being granted the Chinese National compulsive CCC certificate.
