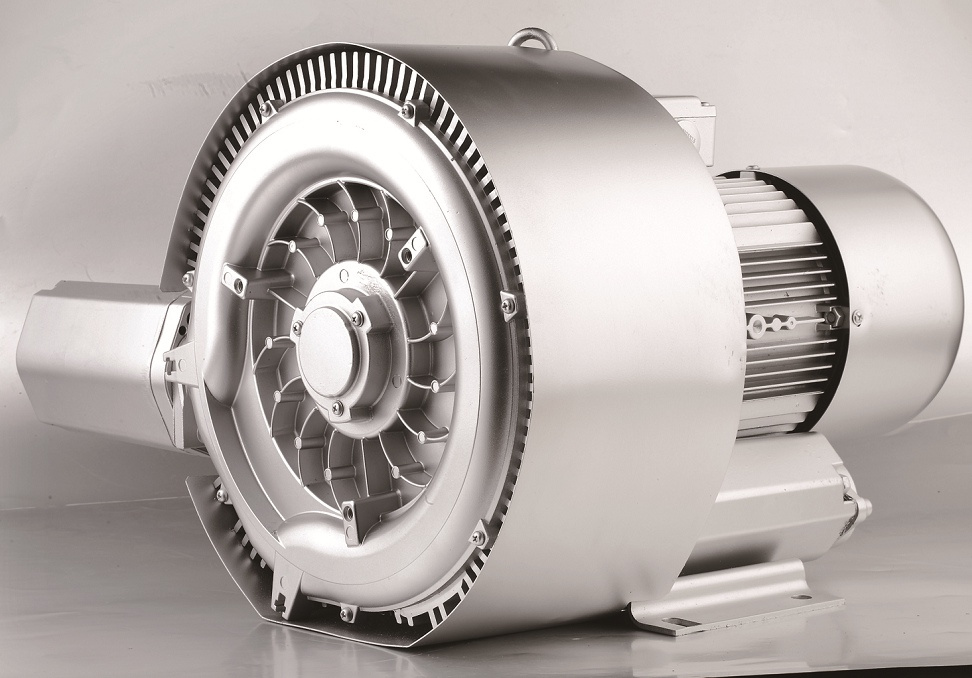

We have nine series side channel blower, from 2HB1 to 2HB9, the air flow capabilities ranges from 80 to 2480 m3/h, the vaccum pressure and compress pressure could reach 500mbar, the power ranges from 0.4KW to 29KW.
The advantages of our products:
1. 100% oil free, Insulation class is F, Protection class is IP55.
2. Dual frequency 50HZ and 60HZ are available
3. Made of die cast aluminum ADC12.
4. Dual usage: compressor and vacuum (suction and blow).
5. Run constantly for 24hours without maintenance
6. Low noise
| Model | Impeller | Frequency | Power | Voltage | Current | Air flow | Rated vacuum | Rated compress | Noises | Weight |
|
| HZ | KW | V | A | m3/h | mbar | mbar | dB(A) | Kg |
| 420 A41 | Double | 50 | 2.2 | 220-240 | 10 | 150 | -265 | 265 | 66 | 31 |
| 60 | 2.55 | 220-240 | 11 | 180 | -310 | 300 | 69 |
REXCHIP Mechanical and Eletrical Co., Ltd is the manufacturers for side channel blowers located in Wenling, Zhejiang, China, which is near Ningbo and Shanghai port. REXCHIP is the leader in the design and manufacture high-quality side channel blowers, we have the patents for our designs. We have focused on the side channel blowers for more than 10years, we only produce side channel blowers.
The air flow capabilities of our blowers range from 80 to 2480 m3/h, the max vacuum pressure could reach -500mbar, and the max compress pressure could reach 600mbar, the power ranges from 0.4KW to 29KW. We only produce side channel blowers.
