Product Specifications
| Prod Model: |
XLB-Q2000 x 3000 x 1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Total Pressure: |
1800t |
| Piston Stroke: |
400mm |
| Plate Size: |
2000*3000mm |
| Plate Heating: |
by Steam |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Weight: |
<50 tons |
| Power: |
10~100KW |
| Voltage: |
380V |
| Using Life: |
≥15 Years |
| Certification: |
CE, ISO |
Product Description

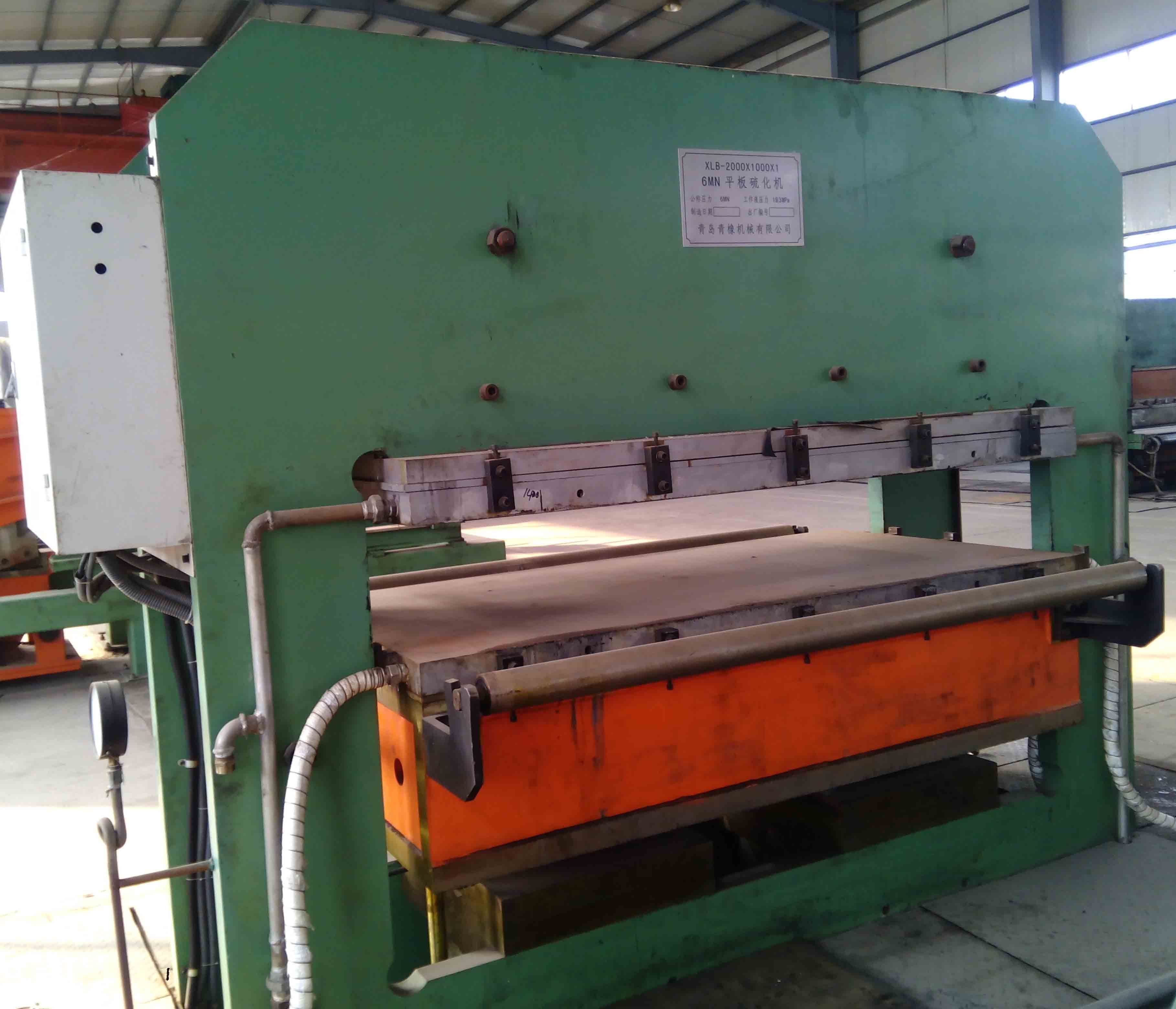

Side plate vulcanizing machine
Function:
1. Used for pressing all kinds of rubber model products, rubber plate, thermostting plastic.Such as doormat, o-ring, seal and so on.
2. Used as common hydraulic machine.
Features:
1. Mainly consists of main machine, hydraulic system and electrical system.
2. Frame type, with bottom hydraulic cylinder.
3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.
4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.
5. Can provide hand control and electric control as customer's request.
6.Heating method for hot platen: steam heating.
7. The hot platen clearance can be designed as per the size of product & mould.
Advantage:
1. Compact structure, less occupied area.
2. High working pressure
3. High producing efficiency
4. Easy to install. Operation is safe and reliable.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
Our Services:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.
| Making Machine Model No. | XLB-Q2000× 3000× 1 | XLB-Q1400× 5700× 1 | XLB-DQ1300× 2000× 1 | XLB-Q1200× 2500× 1 | XLB-Q1500× 2500× 1 |
| Total pressure(t) | 1800 | 2800 | 560 | 750 | 1000 |
| Plate size(mm) | 2000× 3000 | 1400× 5700 | 1300× 2000 | 1200× 2500 | 1500× 2500 |
| Plate clearance(mm) | 400 | 400 | 400 | 400 | 400 |
| Working layer number | 1 | 1 | 1 | 1 | 1 |
| Piston stroke(mm) | 400 | 400 | 400 | 400 | 400 |
| Plate pressure(MPa) | 3 | 3.5 | 2.15 | 2.5 | 2.66 |
| Main motor power(kW) | 26 | 43.5 | 8 | 9.5 | 11 |
| Overall dimension(L× W× H)(mm) | 2900× 3200× 2860 | 2400× 5800× 3600 | 2000× 1860× 2500 | 2560× 1700× 2780 | 2810× 1550× 3325 |
| Weight(kg) | 66000 | 110000 | 17000 | 20000 | 24000 |
Welcome to make a field inspection of our factory.
Qingdao Juhang Rubber Belt Co., Ltd. A joint-stock enterprise of Qingdao Juhang (Group) locates in Dacun Industrial Park, Jiaonan City Shandong Province China, is a big and famous manufacturer mainly producing conveyor belt.
With using of Chinese mineral industry university, Shandong science and technology university hundreds years of technology and production experience, we can provide high quality conveyor belt products such as steel cord conveyor belt, layered belt, tube conveyors and other hundreds of products, to meet domestic and international coal mines, metallurgy, terminals, power, building materials, chemical and food industries such as transport of materials requirements.
With the advanced Chinese conveyor belt industry's full-automatic rubber mixing center, and 10 high-performance intelligent large-scale curing production lines, our company's annual production capacity reaching 20 million square meters.
Fully equipped testing equipments and advanced detection method to testing from raw materials to semi-finished products till finished goods, can ensuring the quality stability for all users.
Juhang is committed to providing not only conveyor-belt products but also customers with timely and thoughtful professional services. It has a high-quality, high efficient service team to provide clients with selection from the reference to the installation, connection, maintenance of the entire process, all-aspect, all-day service.
With advanced quality and environmental management systems, Juhang has passed ISO9001, ISO14001 and ISO28001 certification.
Qingdao Juhang Machinery Co, . Ltd. Is professional company in producing vulcanization joint machine, vulcanization patching machine, mining explosion suppression vulcanization joint machine and etc. The technique strength is strong, product is well-found, examine means perfect, and it is the biggest production factory of conveyor belt joint machine. "JUHANG" vulcanization machine is famous trademark of China.
