Product Specifications
Product Description

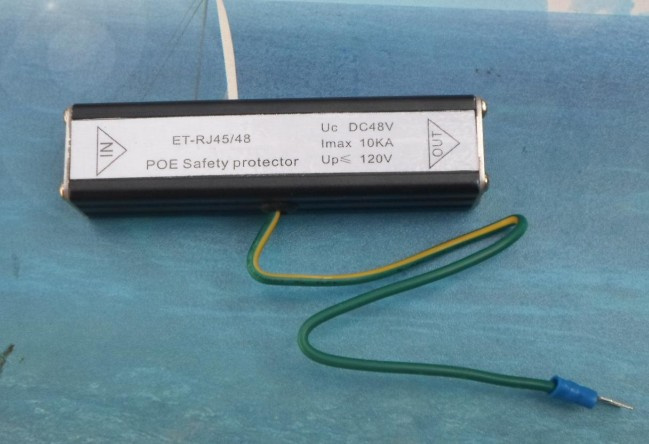

Type ET-RJ45/
Signal Unit Power unit
Normal working voltage Un 12V/24V/36V 24V/48V/90V
Imax continuous working votage Uc 24V/36V/48V 48V/60V/120V
Imax dicharge current (8/20ms) ClassIprotection 10KA
Class IIprotection 3KA Class IIprotection 3KA
Imax voltage proection Up < 30V/or customized < 90V/ customized
Limp breackdown voltage V > 36V > 120V
Protection wires (8 pins) 1\2/3\6 4\5 / 7\8
Transmission rate Vs 1000 M
Network wires standards Cate5 /cate6
Insertion loss dB ≤ 0.5
Wires capacitance < 5PF
Response time ≤ 1ns
Product size 100× 25× 25mm
Shell materials shield aluminium alloy
ET Surge Electric Co., Ltd be founded in 1998, nearly 120, 000 building square meters. Be equipped with many advanced testers and experiment devices, have professional 12 engineers, and more than 130 employees. We provide surge protective device, arrester, lightning protection and so on.
We extended our market all over the world in past few years, and got better reputation from different customers.
Welcome your inquiry and suggestion!
