Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
SMD |
| Model: |
M1 M4 M7 |
Product Description

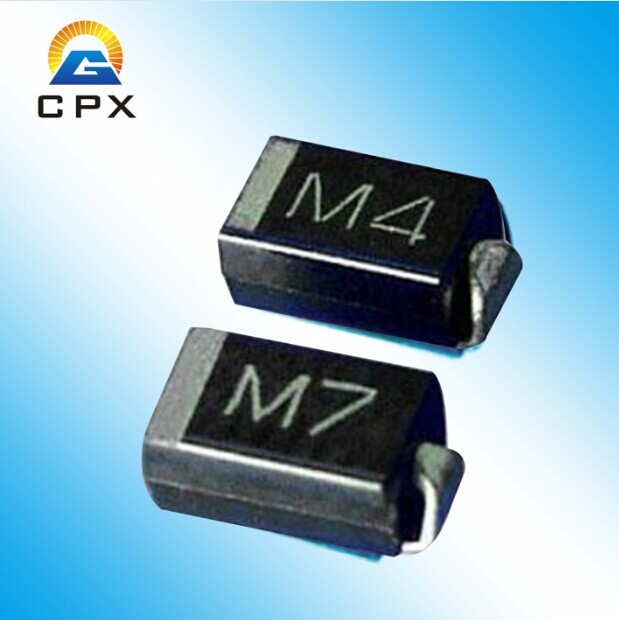

Key Specifications/Special Features of M7:
Features:
Ideal for surface mount pick and place application
Low profile packaging
Built-in strain relief
High sugar current capability
Open junction chip, silastic passivated
High temperature soldering guaranteed: 260° C/10sec/at terminal
Mechanical data:
Terminal: Plated leads solderable per MIL-STD-202E, method 208C
Case: Melded with UL-94 class V-0 recognized flame retardant epoxy
Polarity: Color band denotes cathode
Package: SMA
Packing: Tape in reel, 5, 000PCS/reel, 10, 000PCS/box
Pb-free/ RoHS
Our products are exported to more than 20 countries.
Why choose Trumping:
Manufacturer
With experience of producing diodes for more than 10 years
We accept a minimum order of just 5, 000 units
We can supply free samples
Best service: With rich experience in exporting sales staff will service you
Good quality: Helps you to prevent purchasing risk
Short delivery: Helps you to save time
Competitive price: The price is not the lowest but the highest cost performance.
Primary Competitive Advantages:
Brand-name Parts
Country of Origin
Green Product
Packaging
Quality Approvals
Service
Small Orders Accepted
Refund& Replacement:
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
If the items are defective, please notify us within 3 days of delivery.
Any items must be returned in their original condition to qualify for a refund or replacement.
The buyer is responsible for all the shipping cost incurred.
Contact Us:
If any other questions please feel free to contact us in any time
Tel: 86-755- 26623385
Mobile: 86-18664336272
|
Type Number |
SYMBOL |
M7 |
units |
|
Maximum Recurrent Peak Reverse Voltage |
V RRM |
1000 |
V |
|
Maximum RMS Voltage |
V RMS |
700 |
V |
|
Maximum DC blocking Voltage |
V DC |
1000 |
V |
|
Maximum Average Forward Rectified Current. @TL =110°C |
I F(AV) |
1 |
A |
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method ) |
I FSM |
30 |
A |
|
Maximum instantaneous forward voltage at IFM=1.0A (NOTE1) |
V F |
1.1 |
V |
|
Maximum DC Reverse Current@Ta =25°C |
I R |
1.1 |
uA |
|
at rated DC blocking voltage @Ta =125°C |
5.0 |
|
Typical Reverse Recovery Time (Note 1) |
Trr |
1.5 |
uS |
|
Storage Temperature |
T STG |
-55to+150 |
°C |
|
Operating Junction Temperature |
T J |
-55to+150 |
°C |
