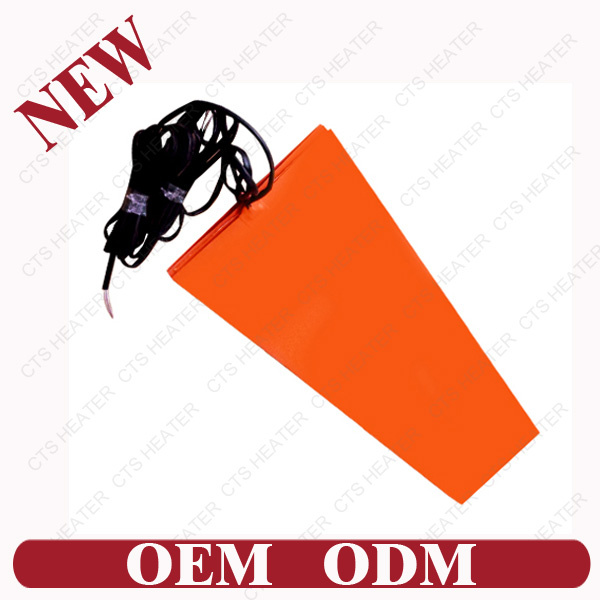

Silicon rubber heater
Silicone rubber blanket heaters heating elements cost less in larger heaters and can reduce capacitive leakage current to meet medical apparatus design standards.
Specification & Features:
· Uniform heating to 220° C (428° F)
· Easy to install
· Heater lengths to 90" (1.8 m)
· Mount to flat or curved surfaces
· TÜ V and UL component recognition marking are standard
· 2.5, 5, 10, 15 watts/in² (0.39, 0.78, 1.55, 2.33 watts/cm² ) at 120 or 240 VAC
· Lower leakage current due to capacitive coupling
Application description:
· Prevent condensation in motors and generators
· Protect instrument cabinets from cold and humidity
· De-icing
· Control fluid viscosity in valves and vessels
· Industrial ovens and thermal processing equipment
· Platens
· Medical devices
|
Heater Properties |
Insulation Material |
|
Material |
PET |
Kapton |
Mica |
Silicon |
|
Max Thickness |
0.2-0.3mm |
0.2-0.3mm |
0.8-1.3mm |
0.5-0.9mm |
|
Max Watts Densities(W/cm2) |
2.5 |
7.8 |
5 |
17 |
|
Voltage range |
3 -380V |
3 -380V |
3 -380V |
3 -380V |
|
Dielectric strength |
1000VRMS |
1000VRMS |
1000VRMS |
1000VRMS |
|
Temperature range |
-32 to 130C -25 to 266F |
-150 to 200C -328 to 392F |
-150 to 600 C -238 to 1112F |
-45 to 230 C -50 to 450F |
For more than 10 years, Shanghai Jukay Heating Technology Co., Ltd. has been designing and manufacturing advanced products for some of the world's most demanding applications. Our offering includes the components of the heating elements: Mica heater, PTC heater, Heating film, Heating tube, Heating cable. We will develop creative and deliver the suitable thermal solution for our customers.
Shanghai Jukay heater adapted its precision etching and laminating expertise to the manufacture of flexible printed circuits, specializes in R&D of new infrared superconducting electric membrane technology, have an advanced, automatic, digital-control coiling machine, possessing first-class production and advanced research facilities with top quality of products. We have already passed ISO9001: 2000 quality management system and certifications.
Our commitment is to provide our customer with superior products and services. Till now our products is covered the countries and regions of Asia, Europe, America, Middle East, etc.
