Product Specifications
| Prod Model: |
Patchcord |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optical Patch Cords: |
Indoor Cable |
| Connector: |
LC.FC.St.Sc.MTRJ.E2000 Option |
| Fiber Type: |
Single Mode |
| Outer Sheath: |
PVC,Lszh Option |
| Tight Buffer Color: |
Yellow |
| Strength Member: |
Aramid Yarns |
| Insertion Loss: |
Less Than 0.3dB |
| Repeatability: |
Less Than 0.3dB |
| Insertion Times: |
More Than 1000 |
| Compatibility: |
Less Than 0.3dB |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
UL |
Product Description
Fiber optic patch cord, SMF-28e, 9/125um, single core, diamter 0.9/2.0/3.0mm, LSZH, 3m(user specified), FC/APC-FC/APC.
Key Features
Low insertion loss.
High return loss.
High stability and reliability.
PVC and LSZH available.
Compliant with Telcordia, TIA/EIA and IEC.

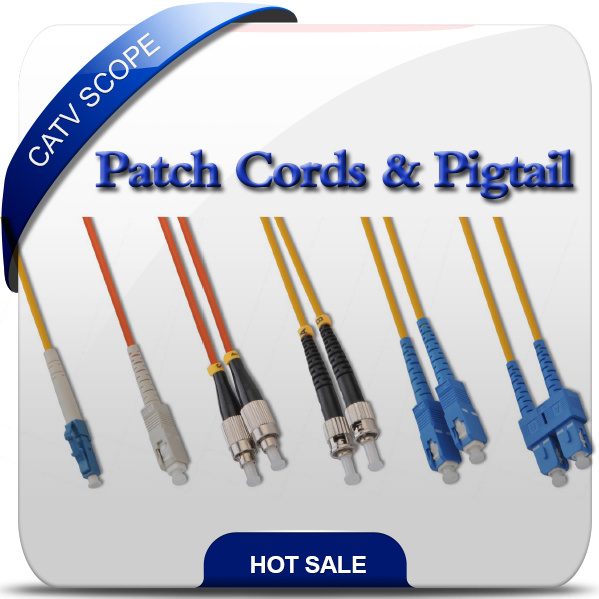

Patch cords |
| Fiber Patch cords provide connections from the network area to the wall outlet or from active equipment to the patch panel. |
| Cords are avvailable as duplex or simplex 62.5/125,50/125,MM or SM fibers,we offer ST,SC,FC or LC connectors. |
| All patch cords are factory polished and 100% optically tested for superior performance. |
| Introduction |
| Insertion loss:less than 0.3dB |
| Return loss:PC more than 40dB,APC more than 60dB |
| Repeatability:less than 0.3dB |
| Compatibility:less than 0.3dB |
| Insertion times:more than 1000 |
| Working Temp:(-20~70ºC) |
| Patch cords |
| A/C+B/D-E-F-G-H |
| AB:LC.FC.ST.SC.MTRJ.E2000.MPO/MEP. |
| CD:PC.UPC.APC. |
| E:SM.OM1,OM2,OM3,OM4. |
| F:S(single),D(Duplex),N(N cores). |
| G:O=OD0.9mm,P=OD2.0mm,Q=OD3.0mm |
| H:1,2,3,4...m. |
| Pigtail |
| A/C-E-F-G-H |
| AC:LC.FC.ST.SC.MTRJ.E2000.MPO/MEP. |
| C:PC.UPC.APC. |
| E:SM.OM1,OM2,OM3,OM4. |
| F:S(single),D(Duplex),N(N cores). |
| G:O=OD0.9mm,P=OD2.0mm,Q=OD3.0mm |
| H:1,2,3,4...m. |
