Product Specifications
Prod Model: |
LXSG-13D5/F~20D5/F |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Install: |
Horizontal |
Nominal Diameter: |
15-50mm |
Principle: |
Speed of Water Meter |
Level Measurement: |
B |
Work Environment: |
Dry Water Meter |
Medium Pressure: |
General Water Meter |
Application: |
Industrial |
Counter Instructions: |
Digital |
Medium Temperature: |
for Cold&Hot Water |
Product Description

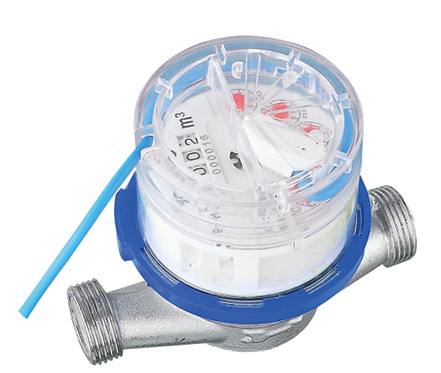

LXSG-13D5/F~20D5/F
Features:
1. Small, light;
2. For cold or hot water
3. Dry-dial, magnetic drive, protected against external magnetic tampering;
4. Vacuum-sealed register, frost resistant, keeps clear reading for long time;
5. Register can be rotated in any direction for convenient reading;
6. Brass body or plastic body, optional;
7. Brass body can be painted or nickel coated;
8. High accuracy;
9. M3;
10. Remote transmission device can be added upon request
Many kinds of sensors, such as Reed Switch, Hall and Weagand can be supplied upon request;
Pulse output may be 10l/pulse;
11. The meters conform to ISO4064 Standard Class B;
Working condition:
Hot water meter≤ 90. C)
Water pressure≤ 1MPa
(PN: 1.6MPa/16bar)
The pressure loss≤ 0.1MPa
Accuracy:
From minimum flow-rate (qmin) inclusive, to transitional flow-rate (qt), exclusive: ± 5%
From transitional flow-rate (qt) inclusive, to overload flow-rate (qs), exclusive: ± 2%, Hot water meter: ± 3%
DN/Q |
Q4=1.25Q3 |
Q3 |
R=Q3/Q1 |
Q2=1.6Q1 |
Q1 |
R=Q3/Q1 |
Q2=1.6 |
Q1 |
l/h |
l/h |
l/h |
15 |
3125 |
2500 |
80 |
50 |
31.25 |
100 |
40 |
25 |
20 |
5000 |
4000 |
80 |
80 |
50 |
100 |
64 |
40 |
|
|
|
|
|
|
|
|
|
Nominal size DN(mm) |
Class of measurement |
Overload flow-rate q s (m/h) |
Permanent flow-rate q p (m/h) |
Transitional flow-rate q t (l/h) |
Minimum flow-rate qmin(l/h) |
15 |
B |
3 |
1.5 |
120 |
30 |
20 |
B |
5 |
2.5 |
200 |
50 |
|
|
|
|
|
|
Overall dimensions and weight
Type |
Size (mm) |
Length (mm) L |
Width (mm) W |
Height (mm) H |
Connecting Thread D |
Weight (kg) |
LXSG(R)-13D6/F |
15 |
80/110 |
77 |
80 |
G3/4"B |
0.57 |
LXSG(R)-20D6/F |
20 |
130 |
77 |
80 |
G1"B |
0.67 |
|
|
|
|
|
