Product Specifications
| Prod Model: |
S100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
Single |
| Output Power: |
51 - 100W |
Product Description

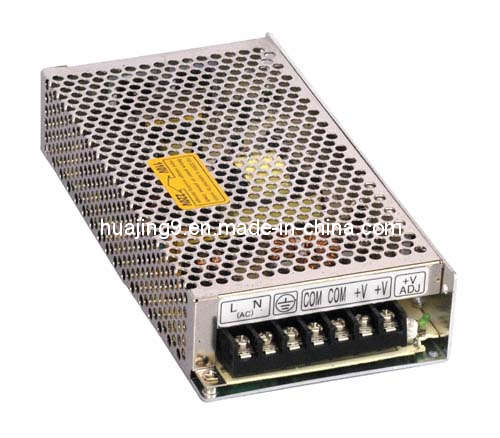

Single output switching power supply 100W
With CE Approval
2 years quality gurantee
Competitived price and high reliability
105C Output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effect
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Installed with EMI filter, minimum wave
| Model Performance | S-100-3 | S-100-5 | S-100-7-5 | S-100-12 | S-100-15 | S-100-24 | S-100-27 | S-100-48 |
| DC output voltage | 3V | 5V | 7.5V | 12V | 15V | 24V | 27V | 48V |
| Output Voltage Tolerance (Note 2) | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated output current | 20A | 20A | 13.6A | 8.5A | 6.7A | 4.5A | 3.7A | 2A |
| Output Current Range | 0 -20A | 0 -20A | 0 -13.6A | 0 -8.5A | 0 -6.7A | 0 -4.5A | 0 -3.7A | 0 -2A |
| Ripple and noise (Note 3) | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Into the line of stability (Note 4) | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| Load stability (Note 5) | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| DC output power | 60W | 100W | 102W | 102W | 100.5W | 108W | 99.9W | 96W |
| Efficiency | 70% | 78% | 80% | 81% | 81% | 84% | 84% | 84% |
| DC voltage adjustable range | 2.85-3V | 4.75-5.5V | 6.75-8.25V | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V | 26-32V | 43.2-52.8V |
| Input Voltage Range | 85 ~ 132VAC/180 ~ 264VAC by switch 47 ~ 63Hz |
| Input Current | 2.4A /115V ,1.2A /230V |
| Inrush Current | Current 30A/115V 60A/230V cold start |
| Leakage | <1mA/240VAC |
| Overload | 105%-150% | 150%-200% | 105%-150% |
| Type:Output shutdown reset:recycle AC ON/OFF |
