Product Specifications
Prod Model: |
DRM18SA |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Accuracy Class: |
Active Class 1.0 |
Rated Current: |
5(20)a ,5(25)a ,5(30)a,5(32)a,,etc |
Display Method: |
LCD 6+1 |
Type: |
Energy Meter |
Display: |
Digital |
Electric Equipment: |
Single-phase |
Theory: |
Electronic Meter |
Installation: |
Direct Connected |
Usage: |
Maximum Demand Meter |
Measured Signal: |
Continuous Wave |
Power Meter Connection: |
Terminal |
Product Description
Application:

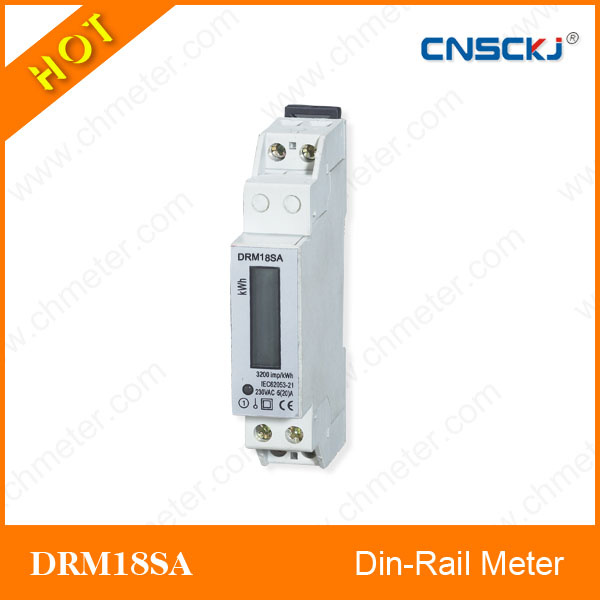

Type Drm18S, Drm18SA single phase DIn rail watt-hour meter is a kind of new style single phase electronic watt-hour meter, it adopt micro-electronics technique of digital and SMT techniquesm etc.
The meter completely accord with relevent technical requirements of class 1 and class 2 single phase energy meter stipulated in National standard GB/T17215-2002 and internation stardard IEC610636. It can accurately and directly measure 50 HZ or 60HZ active energy consumption from single phase AC electricity net., it has following feature; Good reliablity, small volume, light weight, specious nice appearance, convenient installation.
Function and features:
1.35MM standard Din rail installation, complying with standard Din En5002
2.17.5mm width, complying with standard DIn 43380
3.6+1 LCD display.
4. May select 5+1 digit display(99999.1Kwh) and 6+1 digits display (99999, 1. Kwh)
5. Inpulse output when no power, complying with standard Din 43864
Accuracy |
Class 1.0 |
Rated voltage |
220VAC,230VAC,240VAC,etc. |
Operation voltage range |
Un± 20% |
Insulation capabilities |
AC voltage withstand 2kV for 1 minute ; Impulse voltage withstand 6kV - 1 . 2/50μs waveform |
Rated current |
5(20)A ,5(25)A ,5(30)A, 5(32)A ,,etc. |
Operation current range |
0.05Ib~ Imax |
Starting current |
0.004Ib |
Rated frequency |
50Hz or 60 Hz |
Internal power consumption |
Voltage Circuit ≤1.0W 5VA ; Current Circuit ≤1VA(Ib) |
Interface |
Optical coupler (So corresponding to DIN 43864) |
Impulse valence Ra |
0,5 or 1.0 Wh/imp |
Max.operation temperature |
-25 ° C ~ +70 ° C |
Max.storage temperature |
-30 ° C ~ +75 ° C |
Relative humidity |
≤ 85% |
*Please advise us if you have any different specifications,we can make according to your spcal requirements.
|
