Product Specifications
| Prod Model: |
DDSY722 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy Class: |
1.0 or 2.0s |
| Measuring Energy Range: |
0---999W |
| Output Voltage: |
110V,220V,230V,240V |
| Display Type: |
LCD |
| Rated Current(a): |
5(20),5(30),10(40),10(60),15(60) |
| Rated Frequency(Hz): |
50 or 60 |
| Display: |
Indicator |
| Installation: |
General Installation Meter |
| Usage: |
Maximum Demand Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Static Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Pulse Peak |
| Type: |
Energy Meter |
Product Description

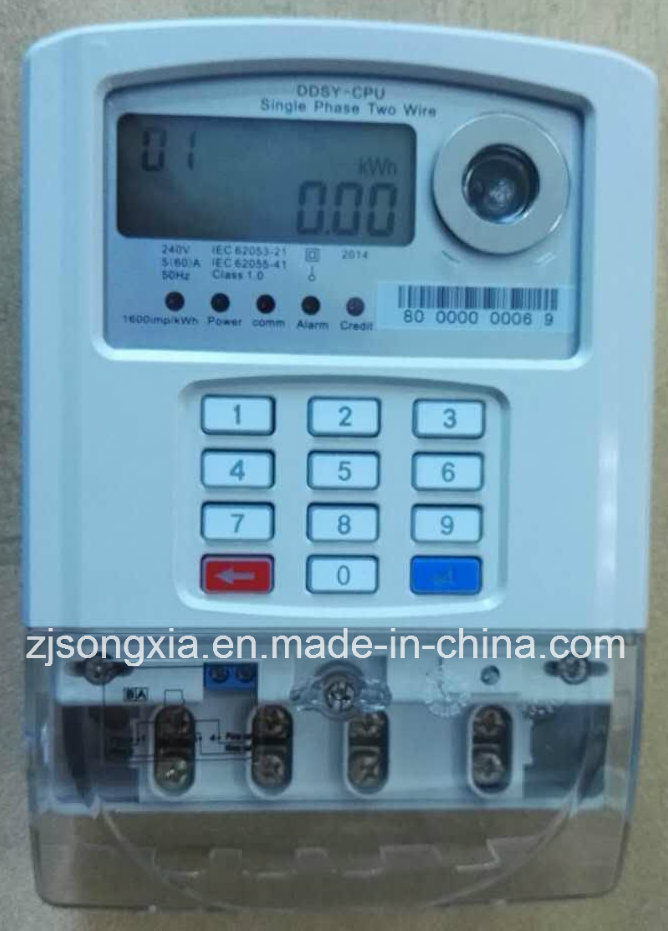

Single phases keypad
Prepayment Energy Meter
1.1 Measure Function
Measure positive active energy consumption, negative active energy consumption, voltage, current, instantaneous power.
1.2 Data Storage
64K NV EEPROM,Record total energy consumption,residual energy consumption,events,recharge recording.
1.3 LCD Display
1.3.1 Backlight
1.3.2 Screen Display
1.3.3 Short Code
1.4 Communication Function
With IR communication port, accord with the standard IEC62056-21. Users can get through the PC software to read and set parameters of the meter.
1.5 Connection diagram
1.6 Overload
1.7 Anti-theft
Reverse Bypass and neutral deficiency Open Cover and Open Terminal Cover Testing
1.8 Event Record
Electric meter can detect and record overvoltage, under voltage, reverse, open meter cover, open terminal cover, magnetic detection, bypass, reset, electricity off,programming, overload and other events, and process accordingly.
1.9 Prepaid Function
Recharge
Customers purchase electricity from the sale power department of the Electricity Bureau, get a sting of charge TOKEN, total is 20 digits. This TOKEN is composed by rechargeable electricity, data and encryption keys generated by STS. Users by key board input correctly 20 digits TOKEN, successfully recharge purchase electricity.
2 Performance specification
GENERAL DESCIPTION | Parameters |
|
| Work place | Outdoor energy meter |
|
| Wire | Single phase two wire |
|
| Connection way | Direct connect |
|
| Rated voltage Un | 230V |
|
| Rated current Ib | 5A |
|
| Max.current Imax | 60A |
|
| Frequency FN | 50Hz |
|
| Pulse constant C | 1000imp/kWh |
|
| Environmental influence | Specified operating range | -10ºC ~ +45ºC (Indoor) |
|
| Limit operating range | -25ºC ~ +55ºC (Indoor) |
|
| Storage temperature | -25ºC ~ +85ºC |
|
|
| Meter life | 15 years |
|
