Product Specifications
Prod Model: |
SEM052JFCS/WL/MF/DS/XL |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: |
Saip |
Model Number: |
Sem052jfcs/Wl/Mf/Ds/Xl |
Phase: |
Single |
Frequency: |
50/60Hz |
Rated Impulse Voltage: |
6kv |
Type: |
Energy Meter |
Display: |
Digital |
Electric Equipment: |
Single-phase |
Theory: |
Electronic Meter |
Usage: |
Standard Electric Energy Meter |
Measured Signal: |
Continuous Wave |
Power Meter Connection: |
Terminal |
Installation: |
Front Panel Mounted |
Product Description

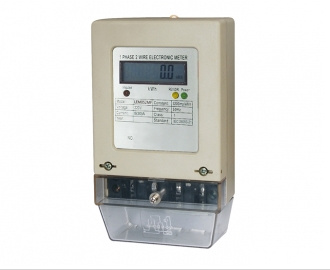

Single Phase Panel Mounted LCD Indicated Meter (SEM052JFCS/WL/MF/DS/XL)
1. Application
The SEM052 series electronic meter is advanced front panel mounted single phase electronic active energy meters. The designs of SEM052 series electronic meter is based on the well-known model SEM051 series, fully absorbing the new technologies of electronic meters from home and abroad. SEM052 series electronic meter technical performances completely conform to International Standards IEC 62053-21 for Class 1 single phase active energy meter. SEM052 series electronic meter can directly and accurately measure the load active energy consumption in the single phase AC networks of rated frequency 50Hz or 60Hz and used indoors or in the meter box outdoors. The SEM052 series electronic meter has multiple configurations for option, to be suitable with the various market demands. SEM052 series electronic meter has features with excellent long-term reliability, small volume, light weight, perfect appearance, easy installation, etc.
2. Functions and Features
√ SEM052 series electronic meter; Front panel mounted in 3 points for fixing. The centre-to-centre distance between the top mounting holes and the bottom one is 130 147 mm, which the user can select any needed distance, in accordance with Standards BS 7856 and DIN 43857.
√ SEM052 series electronic meter; Can select the step motor impulse register of 5+1 digits (99999.1kWh) or 6+1 digits (999999.1kWh) LCD display.
√ SEM052 series electronic meter; Can select the maintenance free lithium battery inside for LCD display to read the meter while the power is cut.
√ SEM052 series electronic meter; Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864.
√ SEM052 series electronic meter; LEDs indicate the power state (green) and the energy impulse signal (red).
√ SEM052 series electronic meter; Automatic detection for the load current flow direction and will be indicated by LED.
√ SEM052 series electronic meter; Measure the active energy consumption in one direction on single phase two wire or single phase three wire, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21.
√ SEM052 series electronic meter; Direct connection. For single phase two wire, two types of connections: Type 1A and type 1B for option. For single phase three wire, the connection is type 2A.
√ SEM052 series electronic meter; Can select the extended terminal cover or short terminal cover.
Technical parameters |
|
|
|
|
|
|
Model |
Accuracy |
Reference
voltage (V) |
Current
specifications (A) |
Starting
current (A) |
Insulation
performance |
SEM052JFCS/WL/MF/DS/XL |
Class 1 |
127 or 230 |
5(30)
10(60)
20(120) |
0.02
0.04
0.08 |
AC voltage 4kV for 1 minute, 1.2/50us waveform impulse voltage 6kV. |
