Product Specifications
| Prod Model: |
DRM18S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
220V,120V |
| Accurancy: |
Class1 |
| Insulation Performance: |
AC Voltage 2kv for 1 Minute Impulse Voltage 6kv |
| Type: |
Energy Meter |
| Display: |
Digital |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Installation: |
Direct Connected |
| Usage: |
Maximum Demand Meter |
| Measured Signal: |
Continuous Wave |
| Power Meter Connection: |
Terminal |
Product Description
Application:

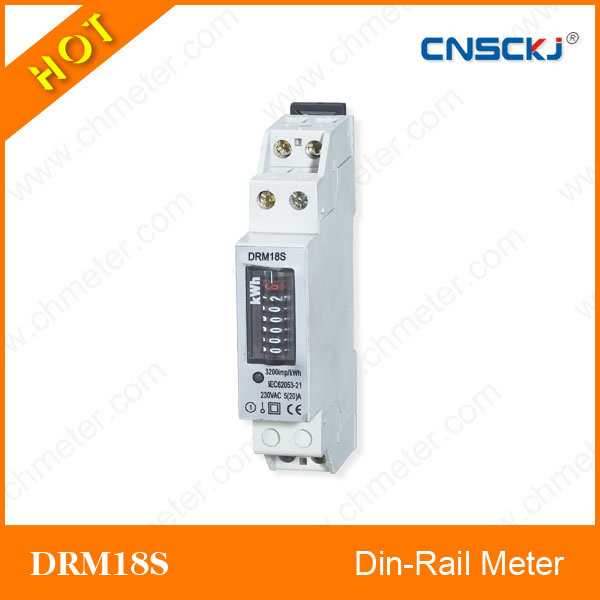

Type Drm18S, Drm18SA single phase DIn rail watt-hour meter is a kind of new style single phase electronic watt-hour meter, it adopt micro-electronics technique of digital and SMT techniquesm etc.
The meter completely accord with relevent technical requirements of class 1 and class 2 single phase energy meter stipulated in National standard GB/T17215-2002 and internation stardard IEC610636. It can accurately and directly measure 50 HZ or 60HZ active energy consumption from single phase AC electricity net., it has following feature; Good reliablity, small volume, light weight, specious nice appearance, convenient installation.
Function and features:
1.35MM standard Din rail installation, complying with standard Din En5002
2.17.5mm width, complying with standard DIn 43380
3.6+1 LCD display.
4. May select 5+1 digit display(99999.1Kwh) and 6+1 digits display (99999, 1. Kwh)
5. Inpulse output when no power, complying with standard Din 43864
Technical parameters:
Outer and mount dimension:
|
Meter type |
Single Phase DIN Rail energy meter with register display |
|
Digit length |
5+1 |
|
Operational voltage |
(-15% ~ +10%)Un |
|
Insulation capabilities: |
|
|
|
- AC voltage withstand |
2KV for 1 minute |
|
|
- Impulse voltage withstand |
4KV – 1.2µS waveform |
|
Rated current (Ib) |
|
10A |
|
Maximum rated current (Imax) |
60A/80A/100A(option) |
|
Operational current range |
0.4% Ib- Imax |
|
Test output flash rate (RED LED) |
400imp/kWh |
|
Pulse output rate (pins 20 & 21 |
400imp/kWh |
|
Reverse indicator (RED LED) |
Current reverse |
|
Consumption indicator (RED LED) |
Flashing at load running |
|
Data store |
The data can be stored for more than 25 years without po |
