Product Specifications
| Prod Model: |
DDS155 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy Grade: |
Class1.0, 2.0 |
| Voltage: |
110V/220V/230V/240V |
| Frequency: |
50Hz/60Hz |
| Power Consumption: |
Less Than 0.8 W |
| Display Mode: |
Register/LCD/LED |
| Starting Current: |
0.002ib |
| Rated Current Ib(a): |
1.5(6),5(30),10(40),10(60),20(80) |
| Impulse Constant: |
6400, 3200, 2400, 1600, 1200 |
| Creeping Design: |
Logical Anti-Creeping |
| Brand: |
OEM/Radarking |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Maximum Demand Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |
Product Description
DDS155 single phase electronic watt-hour meter uses imported specific large-scale integrated circuits and other advanced technology.It can measure AC single phase active electric power which the rated voltage is 220V and frequency is 50Hz.
It can measure forward and reverse active power accurately and it calculates accumulatively in the same direction.
It can prevent electric larceny at the same time.
It outputs heartbeat through optical couple. LED displays electricity consumption,so that it si easy to control.
Functions:
1. Standard configuration 5+1 digits display(99999.1kWH)by step motor and pulse machinery counter. May select 6+1 digits display-Configuration one port of pulse output passive(polarity).
2. Two led instructions power state and signal of power impulse.
3.Automatic detect the direction of the trend of load current. And onely yellow led display when working,this is meaning the load current reverse.
4.Single direction single component measure single phase two wire active power consumption. It is nothing with direction of the trend of load current. 5.Complying with standrad IEC62053-21.Direct connect and use, there are two types you may select.
6.The power dissipation is less than 0.5w when power supply 120v, and power dissiptaion less than 0.8w,circuit dissipation less than 0.5VA while power supply 120V, which is much higher standard than IEC 62053-21.
7.Standard configuration extended terminals cover, may select short terminals cover, in order to protect to use electricity safely;
| 1 | Applicable Standards | IEC60521,IEC514 |
2 | Accuracy | Class 2 (according to IEC60521) |
3 | Average service life (MTTF) | 10years |
4 | Basic current (lb) A | 1.5 2.5 3 5 10 10 15 20 30 |
5 | Maximum current (Imax) A | 6 10 12 20 40 50 60 80 100 |
6 | Rating current of transformer In | 5A Direct connection |
7 | Reference voltage Un | 110V,120V,220V,230V,240V |
8 | Reference frequency fn | 50Hz,60Hz |
9 | Power losses in voltage circuit at Un | 50Hz: 1.2W/6VA, 60Hz: 1.0W/5VA |
10 | Power losses in current circuit at 50Hz Un Ib | <0.6VA |
11 | Non-running with no-load | 0.8~1.1Un |
12 | Starting current | 0.5%lb |
13 | Mean temperature
Form0.1lb to Imax at unity PF
Form 0.2lb to Imax at unity 0.5lagging | <0.08%/°C
<0.12%/°C |
14 | Insulation level:
Withstanding A.C. voltage for 50Az, 1min
Withstanding impulse voltage 1.2/50us | >2kV(when Bakelite base>4kV)
>6KV(when Bakelite base>8kV) |
15 | Rated load speed at unity PF, lb | 13.2r/min |
16 | Rated load torque at unity PF, lb | 450uNm |
17 | Weight of rotor | 24g |
18 | Weight of meter | 1.5~1.6kg |
19 | Meter base | Steel, Aluminum alloy, Bakelite |
20 | Meter cover | ABS, Aluminum, Glass, Bakelite,
transparent PC |
21 | Terminal cover | ABS, Bakelite, PC |
22 | Register | Cyclometer single, Unidirectional,
Jumping , Metal |
23 | Option | Reverse running stopper, pulse
sampling device |
*Please advise us if you need any different specifications,we can make according to your special requirements

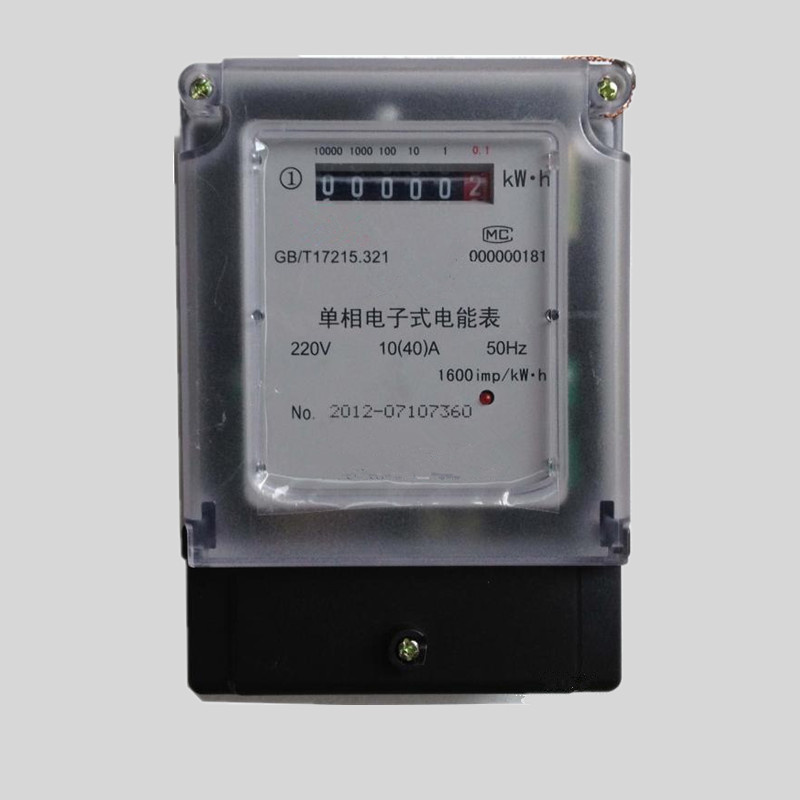

(*Pictures below for reference only, subject to the real appearance.)
Transportaion & Storage Condition
The meters should be free from violent collision when being delivered or sealed off, and the buyer should in accord with the rules of ZBW003-82/84 for General Technical Conditions Of Instrument And Apparatus Packaging to transport and store them.
The meter should be stored in its original pack and the ambient temperature to keep them should be within -25ºC and 70ºC, there are no corrosive gas in the air.
The meter should be placed on the shelves in the warehouse and the stack height should be less than 5 cartons.
There shall be no harmful substance causing the corrosion in the air.
