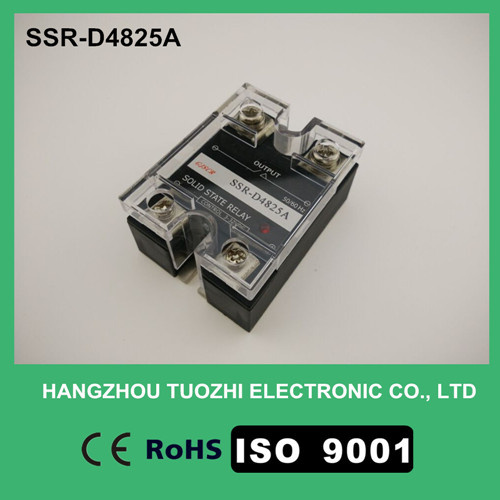

Features:
Optical isolation.
Provide transparent protecting cover.
4000V dielectric strength.
Zero-crossing or random turn-on switch.
Panel Mount.
SCR antiparallel output.
RC absorption circuit build-in.
LED working status indication.
Size: 57.4mm×45.7mm×23mm
Application:
Electric furnace temperature-control, Rubber and Plastic Machine, Printing Machine, Package Machine, Fountain Control, Numerical control Machine, Stage lighting ect industry automation area.
Specification:
| Input(Control) parameter (TA=25ºC) |
| Input voltage range (DC) | 3-32VDC |
| Turn-on voltage (DC) | 3.0VDC |
| Turn-off voltage (DC) | 1.0VDC |
| Input current (typical) | 12mA |
| Input Current (max) | 15mA |
| Reversed polarity voltage (DC) | -32VDC |
| Output(Load) parameter (TA=25ºC) |
| Style | D2425A | D4825A | D6625A |
| Output voltage range | 40~280VAC | 40~480VAC | 90~660VAC |
| Maximum ransient voltage | 800Vpk | 1100Vpk | 1500Vpk |
| Maximum Output Leakage Current | 5mA | 5mA | 5mA |
| Maximum output voltage drop | 1.5Vrms |
| Maximum loading current | 25A |
| Maxmium surge current(10ms) | 10 times of rated current |
| Minimum power factor | 0.5 |
| Maximum turn-on time | 1/2 cycle+1ms |
| Maximum turn-off time | 1/2 cycle+1ms |
| Off-state critical of rise rate of voltage dv/dt | 500v/μs |
| Other Parameter (TA=25ºC) |
| Dielectric Strength | 4000VAC(input/output)
2500VAC(input/output/bottom case) |
| Insulation resistance | 1000MΩ(500VDC) |
| Operating temperature | -30ºC~80ºC |
| Storage temperature | -30ºC~100ºC |
| Weight | 110g |
