Product Specifications
| Prod Model: |
TDP-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Tablet Press Machine |
| Model: |
Tdp-6 |
| Max. Depth Of Fill: |
15mm |
| Max. Thickness Of Tablet: |
7.5mm |
| Power: |
750W, 380V, 50Hz/ 110V, 60Hz/220V, 50Hz |
| Overall Size: |
650 * 600 * 700mm |
| Finished Dosage Form: |
Tablet |
| Type: |
Crude Drug Equipment |
| Certification: |
CE |
Product Description

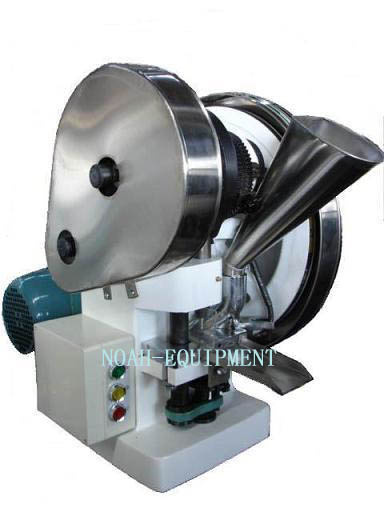

TDP-6 Single Punch Tablet Press Machine is used for tabletting different kinds of granular raw materials into tablet. It is applicable to trial manufacturing in Lab or batch produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape.
It features a small desktop type press for motive and continual sheeting. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable
|
Model |
TDP-6 |
Max.Pressure |
60KN |
Max.Dia of Tablet |
25mm |
Max.Depth of Fill |
15mm |
Max. Thickness of Tablet |
7.5mm |
|
Production Capacity |
3600pc/h |
Power and Voltage of Electromotor |
1p,750W,220V, 50Hz |
Overall Size |
650*600*700mm |
Net Weight |
145kg |
