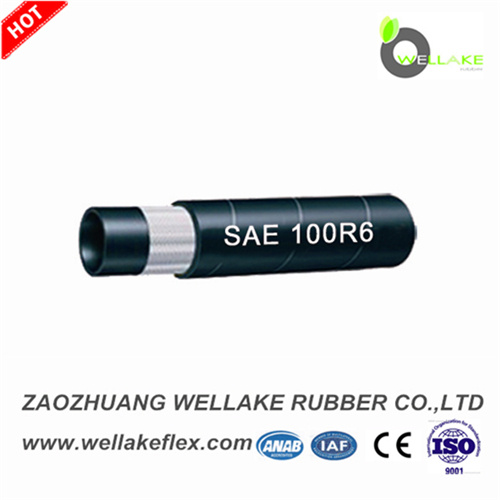

1. Inner tube of oil resistant sythetic rubber
2. One braid of high tensile synthetic fiber
3. Oil and weather resistant rubber cover
4. Working temperature: -40 degree centigrade to +100 degree centigrade
Zaozhuang Wellake Rubber Co., Ltd, is one of the leading manufacturers in China which specializes in rubber hoses. Our company is ISO 9001: 2008 certified. We can control and guarantee the quality very well due to advanced equipments, high-quality raw material and skilled workers.
Any questions or requirements, please feel free to contact me.
| SIZE | I.D | O.D | W.P | B.P | MIN B.R | W.T |
| INCH | MM | MIN | MAX | MIN | MAX | MPA | PSI | MPA | PSI | INCH | MM | KG/M |
| 3/16 | 5 | 4.5 | 5.4 | 10.3 | 11.9 | 3.5 | 510 | 14 | 2030 | 1.97 | 50 | 0.11 |
| 1/4 | 6 | 6.1 | 7.0 | 11.9 | 13.5 | 2.8 | 410 | 11.2 | 1620 | 2.56 | 65 | 0.13 |
| 5/16 | 8 | 7.6 | 8.5 | 13.5 | 15.1 | 2.8 | 410 | 11.2 | 1620 | 2.95 | 75 | 0.15 |
| 3/8 | 10 | 9.2 | 10.1 | 15.1 | 16.7 | 2.8 | 410 | 11.2 | 1620 | 2.95 | 75 | 0.18 |
| 1/2 | 12.5 | 12.4 | 13.5 | 19.0 | 20.6 | 2.8 | 410 | 11.2 | 1620 | 3.94 | 100 | 0.26 |
| 5/8 | 16 | 15.6 | 16.7 | 22.2 | 23.8 | 2.4 | 350 | 9.8 | 1420 | 4.92 | 125 | 0.31 |
| 3/4 | 19 | 18.7 | 19.8 | 25.4 | 27.8 | 2.1 | 310 | 8.4 | 1220 | 5.91 | 150 | 0.40 |
ZAOZHUANG WELLAKE RUBBER Co., Ltd is a factory, specialized in hydraulic rubber hose according to SAE and DIN standard. Our main products is SAE100R1AT, SAE100R2AT, SAER7, SAER12, DIN 1SN, DIN 2SN, 4SP, 4SH and TEFLON HOSE.
We are involved in all aspects of the research, development, manufacturer, and sale of a wide variety of hydraulic rubber hose, air hose, water hose, steel wire oil hose, steel wire spiral hose, and related products. Our rubber hose is used increasingly in the fields of mining, metallurgy, petroleum, construction machinery, chemicals and more.
