Product Specifications
| Prod Model: |
ZW-INV013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
162*71mm |
| Color: |
Ss-Silver, Ab-Ancient Bronze |
| Mortise: |
Five-Latches/Single Tongue/Dual Tongue |
| Battery: |
4PCS AA Alkaline Battery |
| Unlocking Ways: |
Mf Card, Fingerprint & Mechanical Key |
| Warranty: |
One Year |
| Working Temperature: |
-20~60 |
| Material: |
Zinc Alloy |
| Type: |
Electronic |
| Style: |
Modern |
| Shape: |
Mortise Door Lock |
| Part: |
Lock |
| Usage: |
Household Door Locks |
| Door Thickness Fits: |
38mm-70mm |
Product Description
Description:

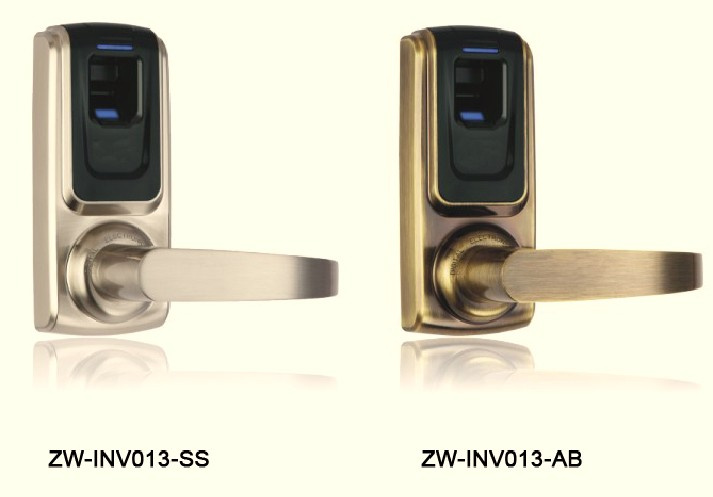

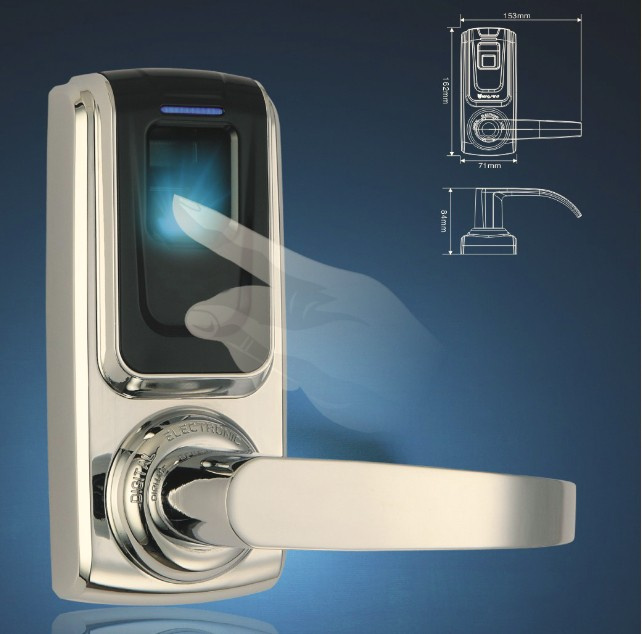

INV electric single tongue fingerprint lock (ZW-INV013-PB/SS/HB) is safe and intelligent. The fingerprint function supports graded authorization management. The microcomputer in lock can identify fingerprint level and take appropriate action. It supports double lock function and normal open setting. Support lock management by software, unlocking records are stored on the lock, could be queried by software.
Features:

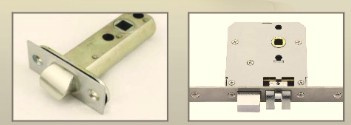

1.Single Tongue Mortise Lock / Dual Tongue Mortise Lock
2.Five latches mortise with deadbolt
3.Hidden cylinder
4. Suitable for apartment, office, reisdential door;
5. Made of Zinc alloy material and durable;
6. Working voltage is 6V with 4pcs AA alkaline baatteries,at least two years battery life,low voltage alarm level at 5V;
7. Three function: RF card, fingerprint and mechanical key
8. hidden cylinder cover on the handle
9. Single tongue lock core: can replace the traditional ball lock without opening the door hole
10. Double lock: input fingerprint and then lift up handle for double lock
11. Normal open: swipe card to set normal open
12. House function: parents fingerprints could open children's room, while children's fingerpints can't open parents room.
Technical Parameter:
* Working voltage: 6.0V (4PCS alkaline Battery)
* Static Power Consumption: <50uA
* Dynamic Power Consumption: <120mA
* Fingerprint capacity: 120pcs
* Fingerprint time: <0.2s
* Fingerprint comparation time: <1s
* FRR: <1
‰* FAR: <1PPM
* Finger angel: 360º
* Fingerprint template setting: twice for 1 template
* Battery Life: More than 24 month
* Low Voltage alram: 4.8V (can open 200 times)
* Working Temperature: -20 º C ~+60 º C
* Working Humidity:45%~85%
* Door Thickness: 28-70mm (can be customized)
Shaoguan Innovate Technology Equipment Co., Ltd. (INV) is a high-tech company that centers on designing, researching and developing products. It provides production, sales, training and service together. INV is located in the section A, Industry Transfer Area Zhenjiang District, Shaoguan city. It covers an area of 4000 m2, have its own hardware department, assembly department, storehouse and office. Since founded in 2007, INV has been committed to smart chip applications products and corresponding management software development and manufacturing. With strong technical advantage, INV is now one of the leaders in smart lock industry, and honored "INV" as the top ten brand of lock in China. So far, INV owns more than 20 domestic patents, including invention patents, utility model patents and design patents. It also owns an international patent (PCT). The company is wholly owner of the INV Brand.
INV has strong technical force and strong technology development capability. It has a group of senior professionals engaged in software development and electronic product development. INV strictly enforce Q/WBK02-2003 enterprise standards for production. Thus, its products are with high performance and stability. INV's products have passed through the testing of National Testing Center For Quanlity of Security & Safety Alarm System Products, and obtain the production of qualified registered ratifications, CE, Swiss SGS certification. INV not only pay attention to improve the products quality, but also focus on product innovation. Thus, constantly develops new products to meet market needs. So far the company has developed a series of products with high stability and strong viability, such as QR code, fingerprint, RF card lock series. INV is the pioneer in the QR code intelligent lock development because we are the first one in the world to use QR code technology in locks. The main products of INV company includes QR code lock, RF card smart lock, fingerprint lock, sauna cabinet locks, energy saving switch, touch screen switches and so on. These products are widely used in hotels, guest houses, villas, offices, senior apartments, home and other places. With high quality products and perfect service, INV has won good market awareness. Its products are only sold nationwide but also exported to many countries and regions, such as France, Turkey, India, Iran, Thailand, Saudi Arabia, Hong Kong and Taiwan.
For the good quality of products, ahead innovation and prefect service, INV has won many praises and trust of our customers. INV is looking forward to establishing long-term business relationship with you in the near future.
