Product Specifications
| Prod Model: |
T300/914 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swing Over Bed: |
300mm |
| Spindle Hole: |
38mm |
| Max.Length Of Work Piece: |
914mm |
| Type: |
Horizontal Lathe |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Power Source: |
Electric |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
Artificial |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
Product Description

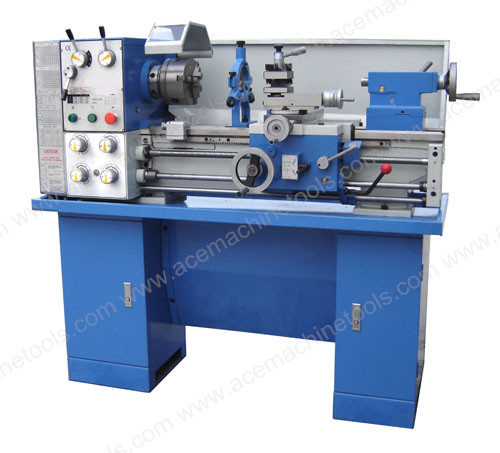

Bench Turning Lathe Machine T300/914
Swing over bed: 300mm
Swing over gap: 430mm
Spindle Hole: 38mm
Max. Length of work piece: 914mm
This machine has the following features:
1, Precision ground and hardened bedways
2, The spindle is supported with precision roller bearings
3, Head stock gears are made of high quality steel ground and hardened
4, Easy operating speed change levers
5, Removable gap is provided for larger diameter work
6, Spindle speed range 70-2000 RPM
7, Three differnet lengths bed are available
8, Easy operating gear box has various feeds and thread cutting function
9, ASA D1-4 camlock spindle nose
10, With or without cabinet according to requirenent
Standard accessory
1. Sleeves MT 5/3
2. Centers (Dead center MT. 3 Alloy center MT. 2)
3.3 Jaw chuck 1 plece
4. V-belt(A762 2 pieces)
5. Metric changing gears (m=1.25...8 pieces)
6. Tool box and tools 1 set 1 set
7. Oil gun 1 piece
Extra Equipment(at extra cost)
1.4-jaw chuck(200mm) 1 piece(8")
2. Face plate(300mm) 1 piece(12")
3. Steady rest 1 piece
4. Follow rest 1 piece
5. Foot stand
6. Foot brake (5.6 special ordering)
| SPECIFICATION | T300/914 |
| SPECIFICATION | METRIC | INCH |
| Max.swing over bed | 300mm | 12" |
| Max.swing over gap | 430mm | 17" |
| Max.length of work piece | 914mm | 36" |
| Max.length of turning | 760mm | 30" |
| Hole through Spindle | 38mm | 1 ½ |
| Taper of spindle bore | M.T.No.5 |
| Range of spindle speeds(9 steps) | 60-1500r.p.m. |
| Taper of quill sleeve | M.T.No.3 |
| Metric threads can be cut (29 kinds) | 0.2-4.5mm |
|
| Inch threads can be cut (40 kinds) |
| 4-112T.P.I. |
| Pitches of three feed leadscrews | 8T.P.I. |
| Longitudinal feed per revolution of spindle(40 kinds) | 0.028-0.791mm/rev | 0.0011-0.0311"/rev |
| Cross feed per revolution of spindle(40 kinds) | 0.010-0.268mm/rev | 0.0004-0.0106"/rev |
| Max.longitudinal travel of saddle | 800mm | 31 1/2'' |
| Max.travel of cross slide | 175mm | 6 7/8'' |
| Max.travel of top slide | 95mm | 3 3/4'' |
| Max.travel of tailstock sleeve | 100mm | 4" |
| Motor horse power | 1.5HP(1.1KW) |
| Motor frequency | 60Hz or 50Hz |
| Motor voltage | 380/415V 115/230V or 110/220V |
| Overall dimensions(L×W×H) | 1700×750×1270mm | 70''×29 5/8''×50'' |
| Net weight | 420kg | 926l.b. |
